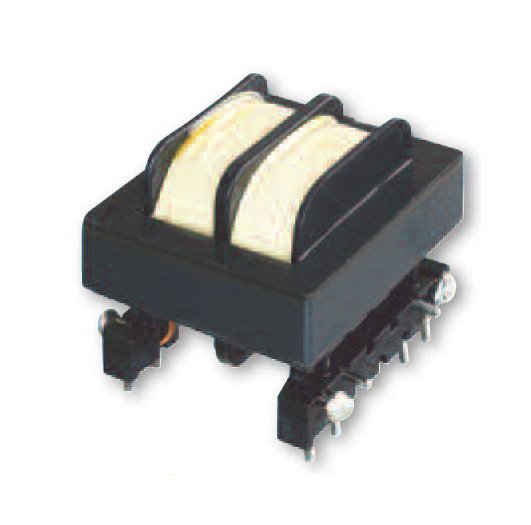

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-d57065
Enhance power supply performance with the CME Series E-Core Common Mode Inductor, minimizing common line noise and meeting regulatory requirements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series E-Core Common Mode Inductor offers superior EMI suppression for power supplies, effectively reducing common line noise and providing reliable differential mode filtering. Designed to meet stringent regulatory requirements, these compact inductors are ideal for minimizing AC line interference from high frequency switching power supplies. With a minimum inductance of 6.90 mH, RMS current of 4.400 A, and maximum DC resistance of 0.077 Ohm, these inductors are constructed with UL rated 130°C materials to ensure high performance and durability.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

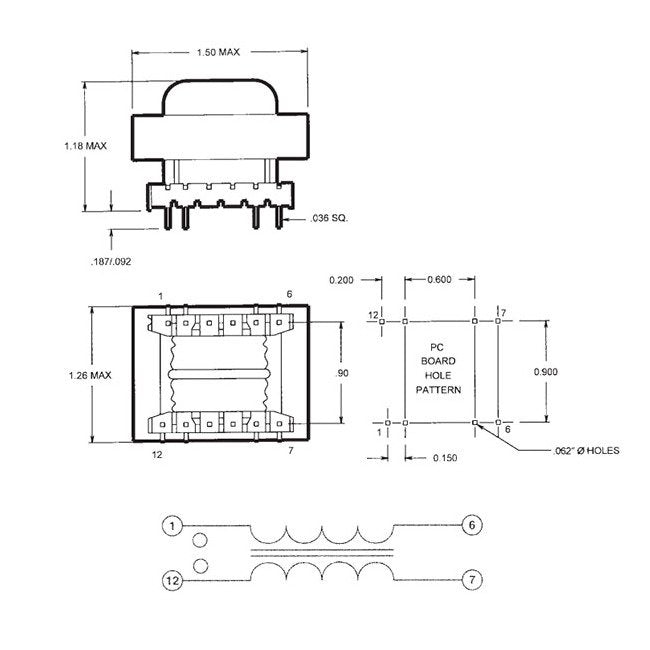

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.077 Ohm
Specifications Min Inductance
6.90 mH
Specifications Min Leakage
70.0 µH
Specifications Rms Current
4.400 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
