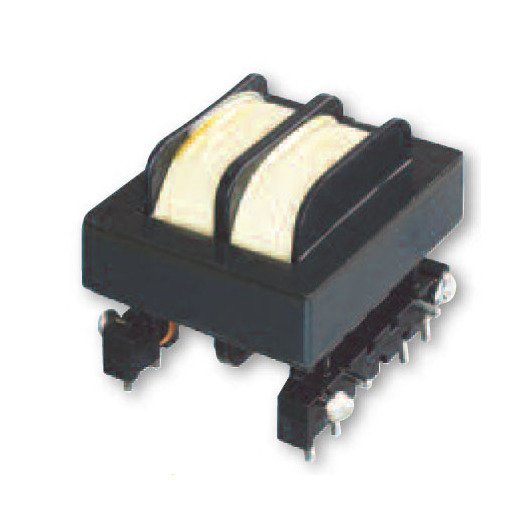

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-eff7e4
Dependable E-Core Common Mode Inductor for efficient EMI suppression in power supplies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series E-Core Common Mode Inductor is a reliable solution for EMI suppression in power supplies, effectively eliminating noise common to all lines while providing superior differential mode filtering. Designed to meet stringent regulatory requirements, these compact inductors minimize AC line transmitted interference caused by high frequency switching power supplies. Constructed with UL rated 130 °C materials, these inductors ensure exceptional performance and durability.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

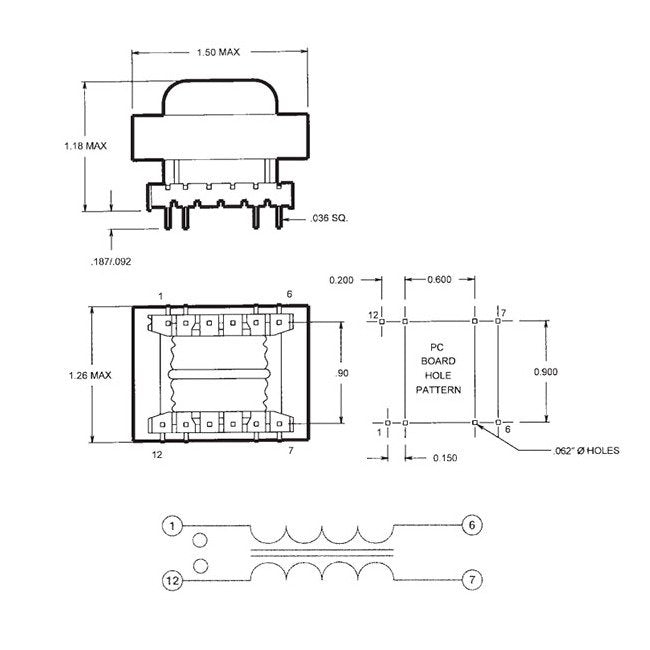

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.122 Ohm
Specifications Min Inductance
10.9 mH
Specifications Min Leakage
125.0 µH
Specifications Rms Current
3.500 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
