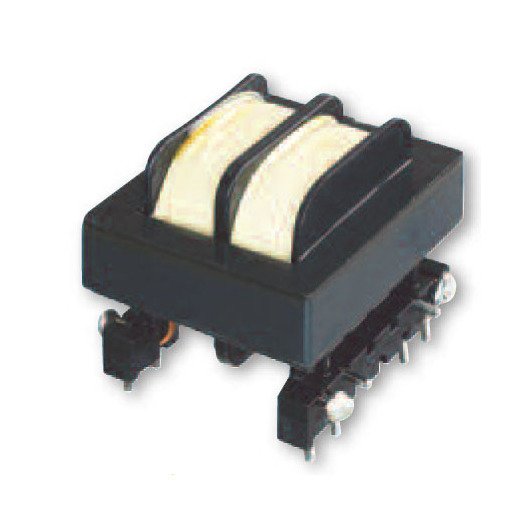

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-bd8218
Highly dependable E-Core Common Mode Inductor for noise elimination in power supplies. Complies with CSA, IEC, UL, VDE standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$45.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series E-Core Common Mode Inductor is a reliable solution for EMI suppression in power supplies, effectively reducing common mode noise across all lines while providing superior differential mode filtering. Designed to comply with CSA, IEC, UL, and VDE standards, these compact inductors are ideal for reducing AC line interference from high-frequency switching power supplies. With a minimum inductance of 70.3 mH, RMS current of 1.380 A, and maximum DC resistance of 0.785 Ohm, these inductors offer high performance in a compact form.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

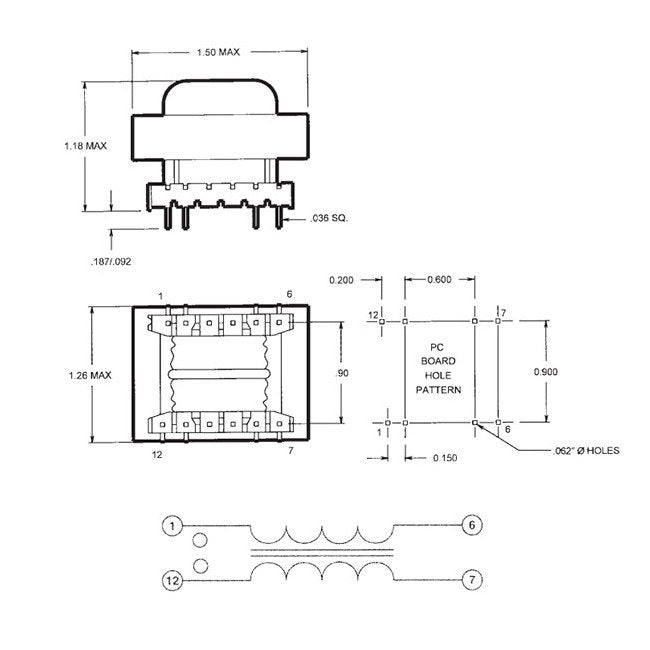

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.785 Ohm
Specifications Min Inductance
70.3 mH
Specifications Min Leakage
720.0 µH
Specifications Rms Current
1.380 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
