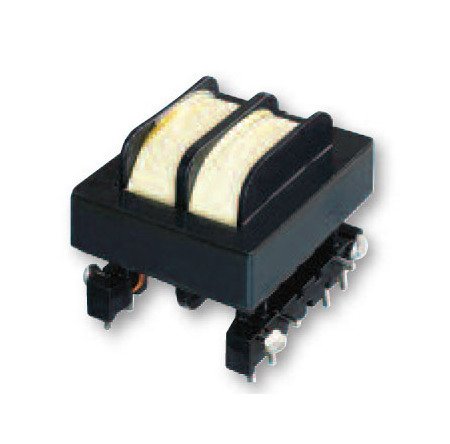

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-1cd066
Reliable CME Series E-Core Inductor for EMI suppression and enhanced filtering in power supplies.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series E-Core Common Mode Inductor is a high-performance solution for EMI suppression in various power supplies, effectively eliminating common mode noise and providing superior differential mode filtering. Designed to meet stringent regulatory requirements, these inductors reduce AC line interference from high-frequency switching power supplies. With a minimum inductance of 16.00 mH and maximum DC resistance of 0.500 Ohm, they are compact, UL-rated, and ideal for placement near the input source. Tested up to 2500 VRMS, they ensure reliable performance with a current rating for a 40°C temperature rise.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

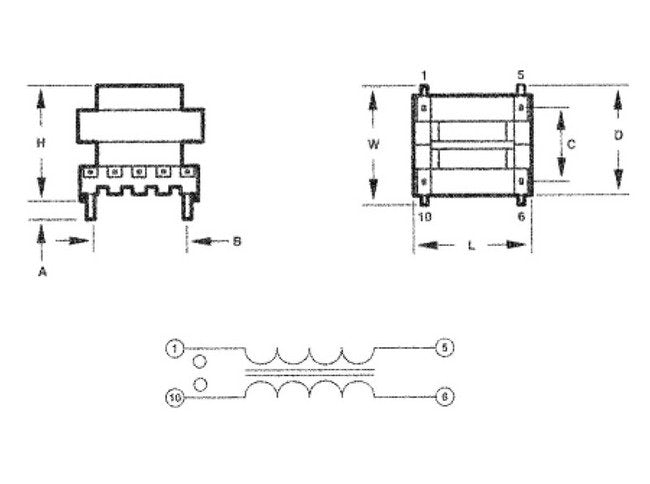

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.500 Ohm
Specifications Min Inductance
16.00 mH
Specifications Min Leakage
90.0 µH
Specifications Rms Current
0.80 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
