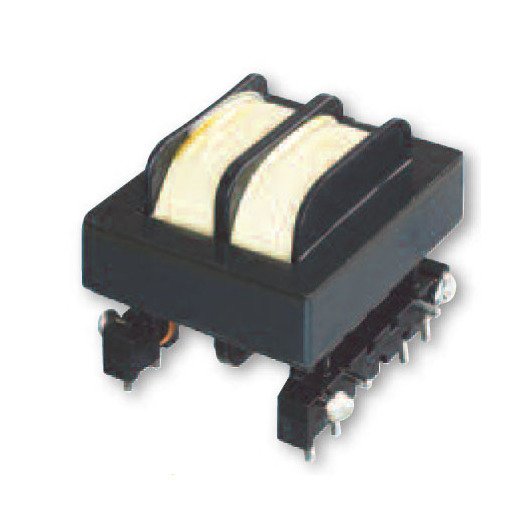

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-b987c9
Dependable EMI suppression inductor for power supplies, meeting regulatory standards with 43.6mH inductance and 1.750A RMS current.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series Common Mode Inductors provide reliable EMI suppression, effectively eliminating noise common to all lines and offering superior differential mode filtering. With a minimum inductance of 43.6 mH, RMS current of 1.750 A, and maximum DC resistance of 0.489 Ohm, these inductors are designed to meet regulatory standards. Constructed with UL rated 130°C materials, these compact inductors are ideal for reducing AC line transmitted interference from high frequency switching power supplies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

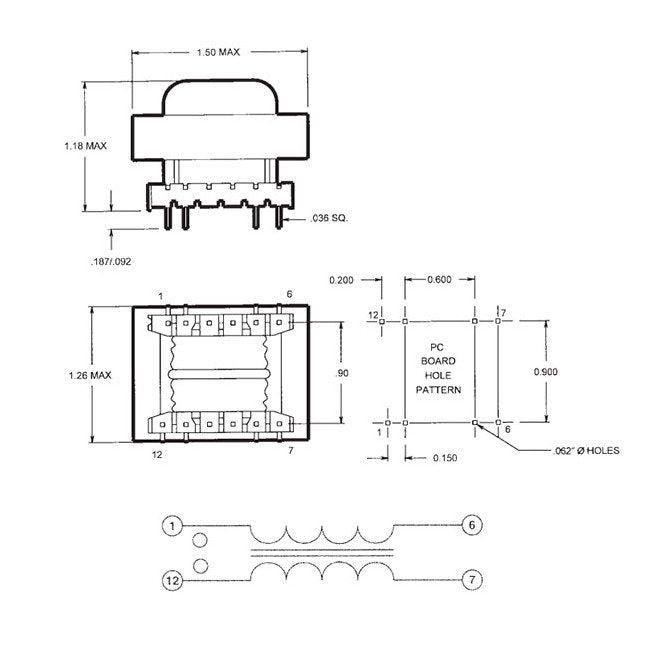

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.489 Ohm
Specifications Min Inductance
43.6 mH
Specifications Min Leakage
440.0 µH
Specifications Rms Current
1.750 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
