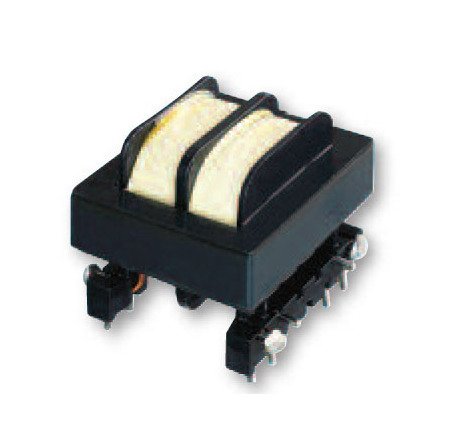

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-517798
Dependable EMI suppression with superior filtering capabilities for power supplies. Compact design meeting regulatory standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series E-Core Common Mode Inductor is a highly dependable EMI suppression solution designed for power supplies, effectively eliminating common noise across all lines and providing superior differential mode filtering. Constructed with UL rated 130°C materials, these compact inductors meet stringent regulatory requirements, minimizing AC line transmitted interference commonly associated with high frequency switching power supplies. With a minimum inductance of 27.7 mH, RMS current of 0.63 A, and max DC resistance of 0.820 Ohm, these inductors are ideal for installations requiring reliable noise suppression and interference reduction.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

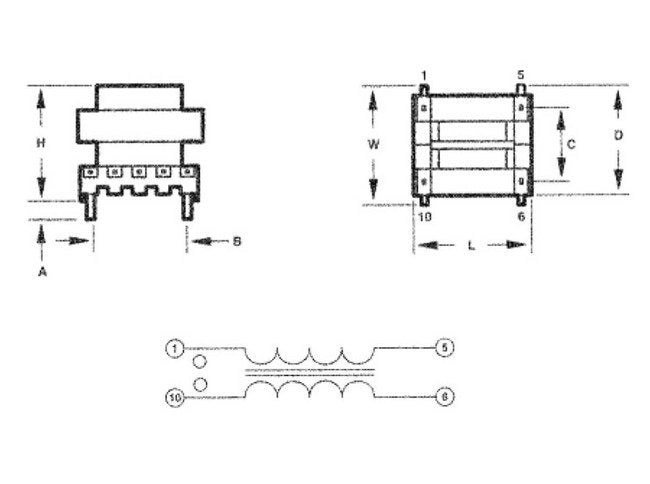

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.820 Ohm
Specifications Min Inductance
27.7 mH
Specifications Min Leakage
144.0 µH
Specifications Rms Current
0.63 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
