CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-f1fbec
Reliable E-Core Common Mode Inductor for efficient EMI suppression and superior differential mode filtering. Meets regulatory requirements with high performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

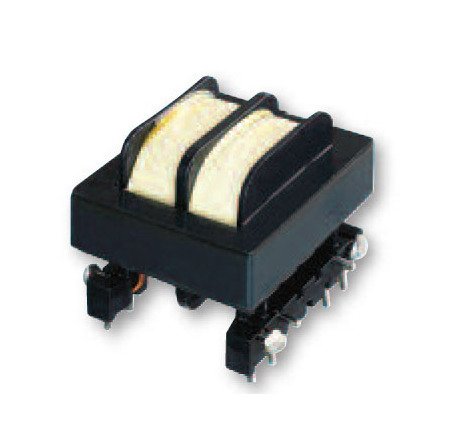

The CME Series E-Core Common Mode Inductor is a reliable solution for EMI suppression in power supplies, effectively eliminating common line noise and providing superior differential mode filtering. Designed to meet stringent regulatory requirements, these compact UL-rated inductors minimize AC line interference caused by high frequency power supplies. With a minimum inductance of 3.80 mH, RMS current of 1.60 A, and maximum DC resistance of 0.127 Ohm, these inductors offer exceptional performance and durability. Perfect for placement near input sources, these inductors are hi-pot tested at 2500 VRMS and constructed with industry-standard CSA, IEC, UL, and VDE compliance.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

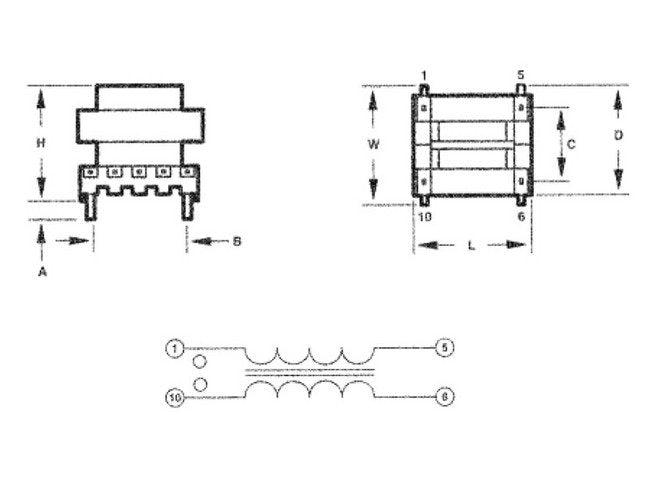

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.127 Ohm
Specifications Min Inductance
3.80 mH
Specifications Min Leakage
25.0 µH
Specifications Rms Current
1.60 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
