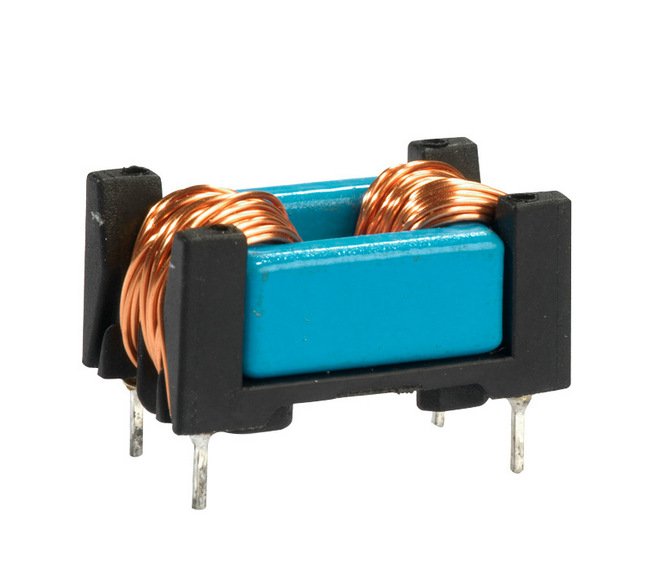

The CMF Series 68mH Common Mode Inductor is designed to provide exceptional common-mode suppression and minimize stray inductance for effective differential-mode noise reduction. With a rated current of 0.9A, low Max. DCR of 1.100 Ohm, and an operating temperature range of -40 to 105°C, this inductor offers compact horizontal configuration, precise dimensions, and reliable performance. Ideal for applications requiring high-quality noise suppression and efficient EMC performance.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

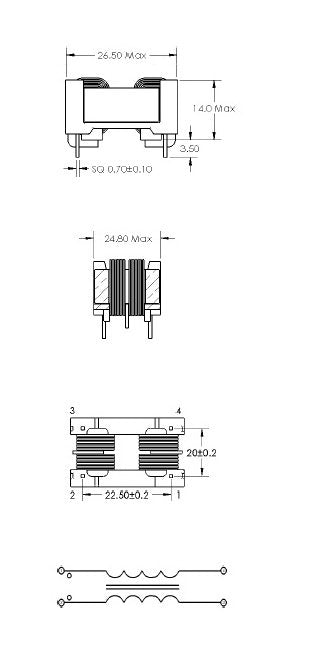

Specifications Height H
14 mm
Specifications Inductance
68 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
26.5 mm
Specifications Max Dcr
1.100 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
3.5 mm
Specifications Pin Mounting A
22.5
Specifications Pin Mounting B
20.0
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
0.9 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
1440 µH
Specifications Weight
17 g
Specifications Width W
24.8 mm
