CMF Series 100 mH Common Mode Inductor
CMF Series 100 mH Common Mode Inductor
SKU:IND-0de30a
Enhance common-mode suppression with CMF Series 100 mH Inductance Common Mode Inductor. Combines features of two components into one for efficient noise suppression.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMF Series 100 mH Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMF Series 100 mH Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

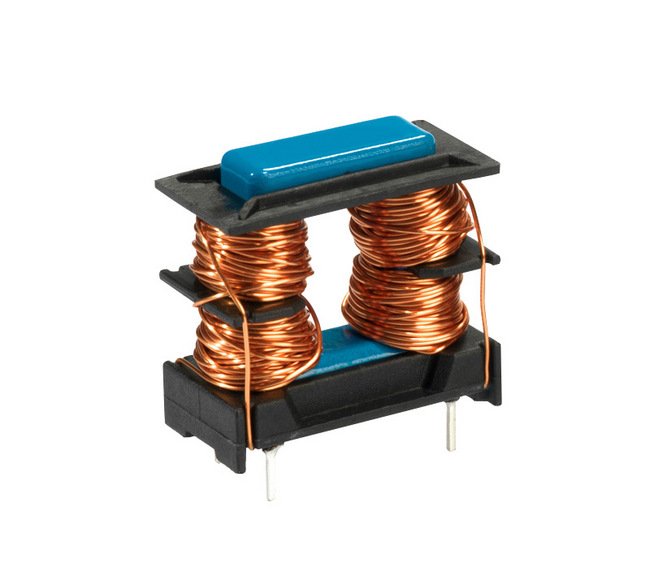

The CMF Series 100 mH Inductance Common Mode Inductor from the CMF Series is designed to provide exceptional common-mode suppression and stray inductance reduction for effective differential-mode noise suppression. This component offers a unique combination of features, merging the functionalities of two separate components into one. With a vertical configuration and precise specifications, this inductor ensures reliable performance in a wide range of applications.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Vertical
Specifications Current Hi Pot
5 mA
Specifications Height H
27 mm
Specifications Inductance
100 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %

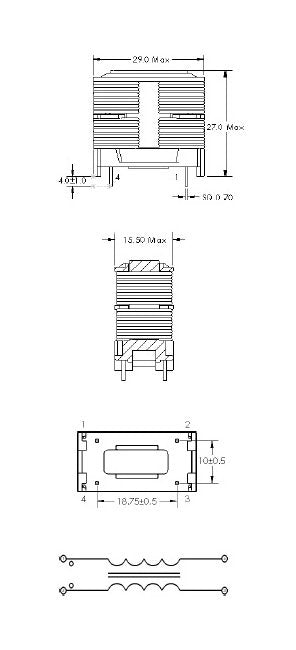

Specifications Length L
29.0 mm
Specifications Max Dcr
1.810 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Length Tolerance
1.0 mm
Specifications Pin Mounting A
18.75
Specifications Pin Mounting B
10.0
Specifications Pin Mounting Tolerance
0.5 mm
Specifications Rated Current
0.7 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
2100 µH
Specifications Weight
17 g
Specifications Width W
15.5 mm
