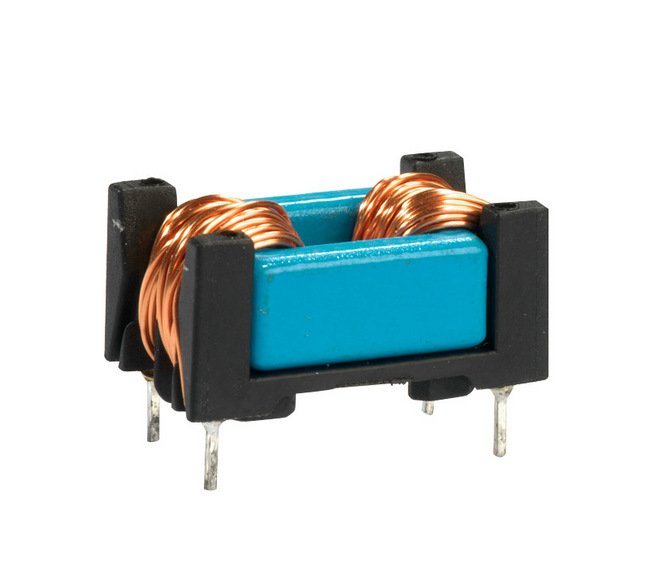

CMF Series 100mH Common Mode Inductor
CMF Series 100mH Common Mode Inductor
SKU:IND-43e2b4
Get superior common-mode suppression with the CMF Series 100mH Common Mode Inductor. Combine two components in one for efficient noise reduction.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
CMF Series 100mH Common Mode Inductor
$12.99
Quantity: 1
Claim Your Seller Account
CMF Series 100mH Common Mode Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 100mH Common Mode Inductor is designed for exceptional common-mode suppression and stray inductance reduction, effectively combining two components in one. With a rated current of 0.45 A, max DCR of 2.930 Ohm, and broad operating temperature range of -40 to 105 ºC, this inductor ensures reliable performance in various applications. It meets rigorous industry standards for common-mode inductors, making it ideal for both consumer and institutional buyers.

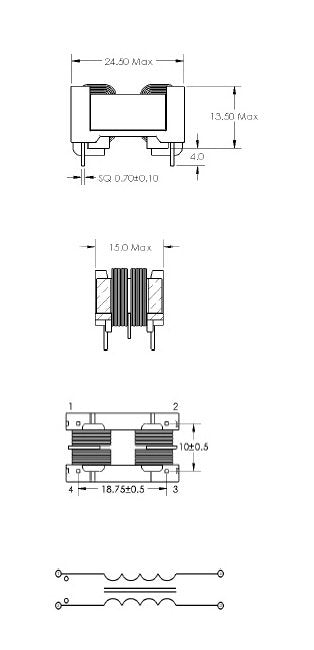

Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA
Specifications Height H
13.5 mm
Specifications Inductance
100 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
24.5 mm
Specifications Max Dcr
2.930 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Mounting A
19.5
Specifications Pin Mounting B
10.5
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
0.45 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
1930 µH
Specifications Weight
9 g
Specifications Width W
15.0 mm
