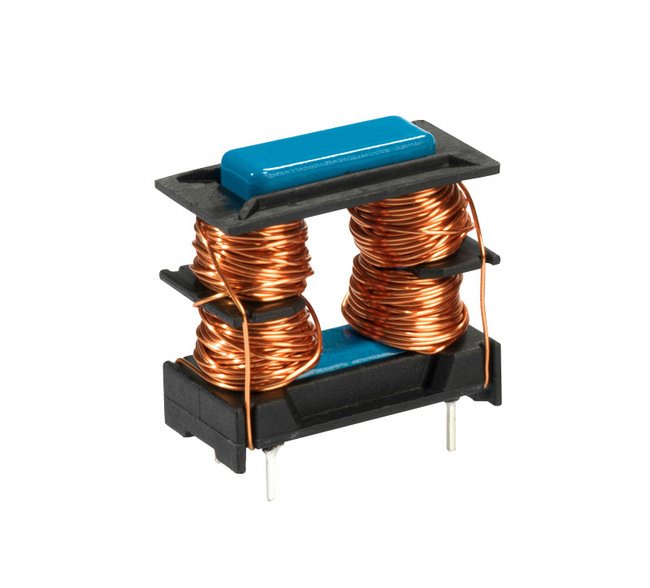

CMF Series 10mH Common Mode Inductor
CMF Series 10mH Common Mode Inductor
SKU:IND-4cd1eb
Reliable CMF Series 10mH Inductor for exceptional common-mode noise suppression. Rated at 2.3A with high performance in a compact design.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
CMF Series 10mH Common Mode Inductor
$14.99
Quantity: 1
Claim Your Seller Account
CMF Series 10mH Common Mode Inductor
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 10mH Inductance Common Mode Inductor is designed to deliver exceptional common-mode suppression and reduce stray inductance effectively. With a rated current of 2.3A and a maximum DCR of 0.188 Ohm, this vertical configuration inductor combines the features of two components in one, ensuring reliable performance in suppressing differential-mode noise. Ideal for applications requiring high levels of common-mode noise reduction.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Vertical
Specifications Current Hi Pot
5 mA

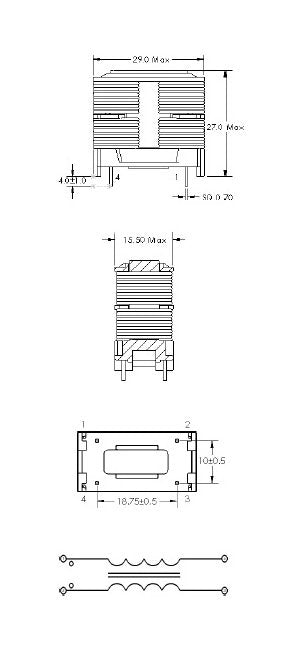

Specifications Height H
27 mm
Specifications Inductance
10 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
29.0 mm
Specifications Max Dcr
0.188 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Length Tolerance
1.0 mm
Specifications Pin Mounting A
18.75
Specifications Pin Mounting B
10.0
Specifications Pin Mounting Tolerance
0.5 mm
Specifications Rated Current
2.3 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
210 µH
Specifications Weight
17 g
Specifications Width W
15.5 mm
