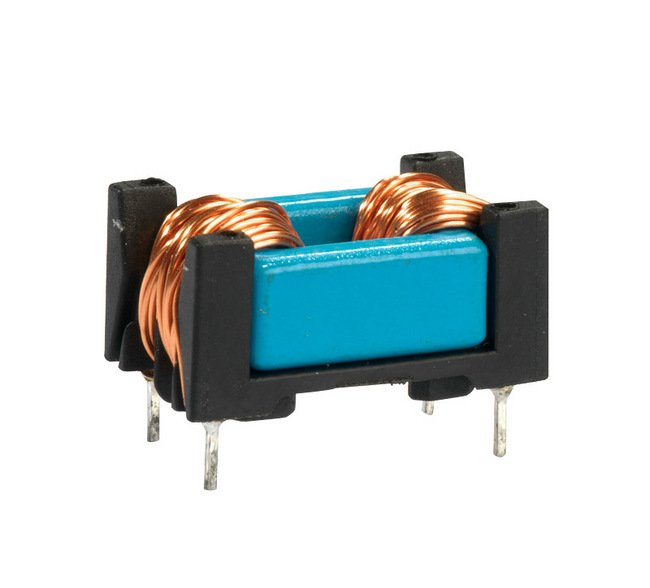

CMF Series 10mH Common Mode Inductor
CMF Series 10mH Common Mode Inductor
SKU:IND-957d07
Experience exceptional common-mode suppression with the CMF Series 10mH Common Mode Inductor. Rated current 1.6 A, Max. DCR 0.290 Ohm. Ideal for noise suppression in electronic systems.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CMF Series 10mH Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CMF Series 10mH Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 10mH Common Mode Inductor is engineered for exceptional common-mode suppression and stray inductance reduction, effectively merging dual-component functionalities into one. With a rated current of 1.6 A and maximum DCR of 0.290 Ohm, this inductor ensures dependable performance in suppressing differential-mode noise. Its compact dimensions and resilient design make it ideal for a wide range of applications, providing reliable solutions for noise mitigation in electronic systems.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

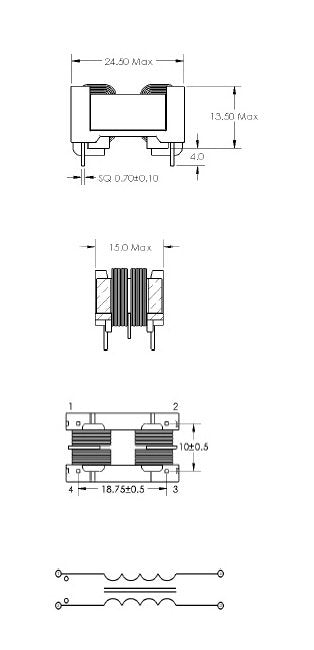

Specifications Height H
13.5 mm
Specifications Inductance
10 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
24.5 mm
Specifications Max Dcr
0.290 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Mounting A
19.5
Specifications Pin Mounting B
10.5
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
1.6 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
200 µH
Specifications Weight
9 g
Specifications Width W
15.0 mm
