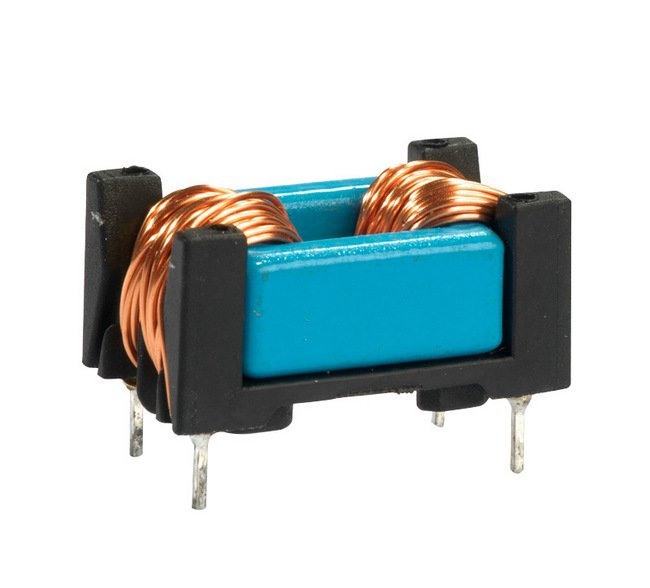

CMF Series 10mH Common Mode Inductor

Name: CMF Series 10mH Common Mode Inductor
Brand: Triad Magnetics
SKU: IND-d88f61
Price: 12.99 USD
Availability: OutOfStock

SKU:IND-d88f61

Enhance noise suppression with the CMF Series 10mH Common Mode Inductor. Rated current of 2.3A, low stray inductance, and compact design for reliable performance.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CMF Series 10mH Common Mode Inductor combines exceptional common-mode suppression with low stray inductance for effective noise reduction. With a rated current of 2.3A and a maximum DCR of 0.188 Ohm, this inductor offers high performance in a compact horizontal configuration. Ideal for applications requiring reliable noise suppression and stable operation in temperatures ranging from -40 to 105 ºC.

Product Specifications

Specifications Alternating Current Ac Voltage Hi Pot

2000

Specifications Clearance And Creepage Distance

>3 mm

Specifications Climatic Category

40/125/56 (to IEC 60068-1)

Specifications Configuration Type

Horizontal

Specifications Current Hi Pot

5 mA

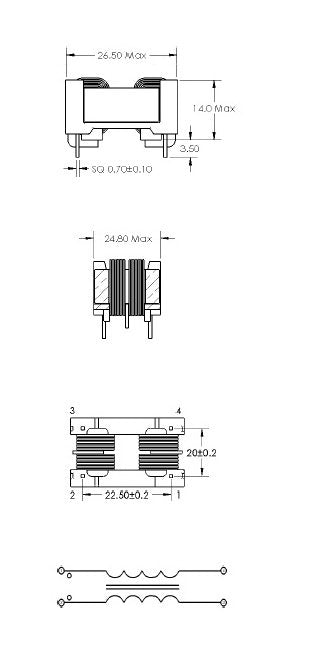

Specifications Height H

14 mm

Specifications Inductance

10 mH

Specifications Inductance Tolerance At 20c

+30 to -50 %

Specifications Length L

26.5 mm

Specifications Max Dcr

0.188 Ohm

Specifications Operating Temperature

-40 to 105 ÂºC

Specifications Pin Diameter

0.70 mm

Specifications Pin Diameter Tolerance

0.10

Specifications Pin Length

3.5 mm

Specifications Pin Mounting A

22.5

Specifications Pin Mounting B

20.0

Specifications Pin Mounting Tolerance

0.2 mm

Specifications Rated Current

2.3 A

Specifications Rated Voltage Ac

250 V

Specifications Time Hi Pot

2 sec

Specifications Type

Common-Mode

Specifications Stray Inductance

210 ÂµH

Specifications Weight

17 g

Specifications Width W

24.8 mm

CMF Series 10mH Common Mode Inductor
