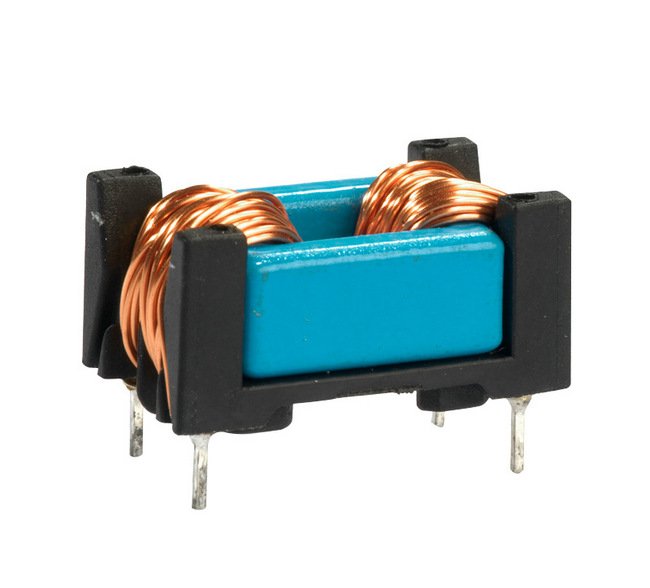

CMF Series 15mH Common Mode Inductor
CMF Series 15mH Common Mode Inductor
SKU:IND-61211d
Experience exceptional common-mode suppression with the CMF 15mH Inductor. Ideal for noise filtering applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CMF Series 15mH Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CMF Series 15mH Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 15mH Common Mode Inductor is designed to provide exceptional common-mode suppression and stray inductance for effectively suppressing differential-mode noise. With a rated current of 1.9A and operating temperature range from -40 to 105°C, this inductor combines the features of two components into one. Its horizontal configuration, compact dimensions, and compliance with industry standards make it ideal for applications requiring reliable common-mode noise filtering.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

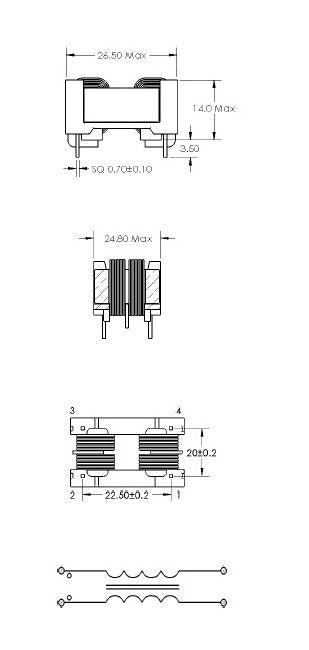

Specifications Height H
14 mm
Specifications Inductance
15 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
26.5 mm
Specifications Max Dcr
0.279 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
3.5 mm
Specifications Pin Mounting A
22.5
Specifications Pin Mounting B
20.0
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
1.9 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
310 µH
Specifications Weight
17 g
Specifications Width W
24.8 mm
