CMF Series 15mH Common Mode Inductor
CMF Series 15mH Common Mode Inductor
SKU:IND-a49861
Enhance common-mode suppression with CMF Series 15mH Inductor for noise reduction in electronic circuits.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
CMF Series 15mH Common Mode Inductor
$14.99
Quantity: 1
Claim Your Seller Account
CMF Series 15mH Common Mode Inductor
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

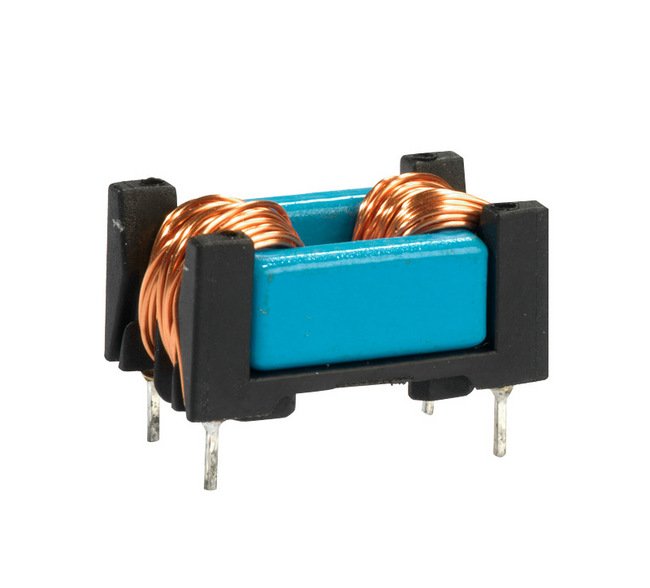

The CMF Series 15mH Common Mode Inductor offers exceptional common-mode suppression and stray inductance reduction for effectively mitigating differential-mode noise. With a compact horizontal configuration and robust specifications such as a rated current of 1.3A, max DCR of 0.430 Ohm, and an operating temperature range of -40 to 105°C, this inductor is a versatile solution for various applications. Weighing just 9g, this inductor is designed to meet the demanding requirements of both consumer and institutional buyers, combining multiple features in a single component.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

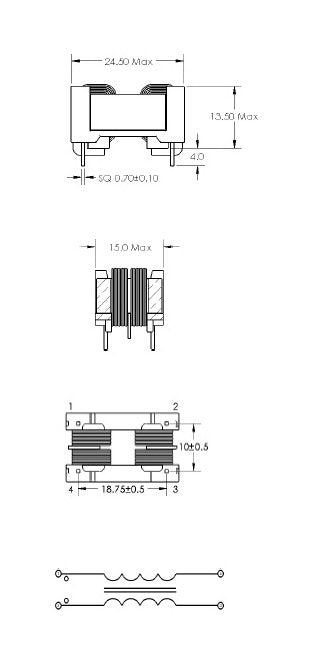

Specifications Height H
13.5 mm
Specifications Inductance
15 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
24.5 mm
Specifications Max Dcr
0.430 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Mounting A
19.5
Specifications Pin Mounting B
10.5
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
1.3 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
290 µH
Specifications Weight
9 g
Specifications Width W
15.0 mm
