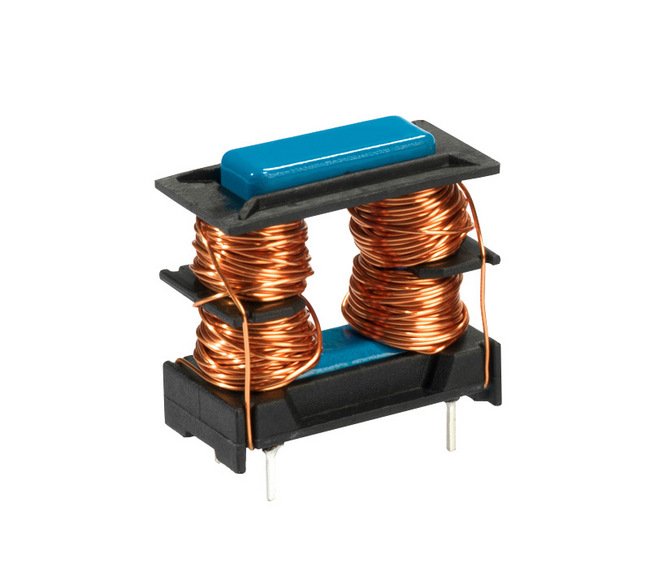

CMF Series 15mH Common Mode Inductor

Name: CMF Series 15mH Common Mode Inductor
Brand: Triad Magnetics
SKU: IND-89a319
Price: 12.99 USD
Availability: OutOfStock

SKU:IND-89a319

Enhance EMC performance with the CMF Series 15mH Common Mode Inductor.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CMF Series 15mH Common Mode Inductor is a versatile component designed for exceptional common-mode suppression, effectively combining the features of two separate components into one. With a rated current of 1.9A and a robust construction, it ensures reliable performance in suppressing both common-mode and differential-mode noise. The inductor's compact dimensions, precise configuration type, and high-rated voltage of 250V make it ideal for a wide range of applications in industries requiring strict electromagnetic compatibility standards.

Product Specifications

Specifications Alternating Current Ac Voltage Hi Pot

2000

Specifications Clearance And Creepage Distance

>3 mm

Specifications Climatic Category

40/125/56 (to IEC 60068-1)

Specifications Configuration Type

Vertical

Specifications Current Hi Pot

5 mA

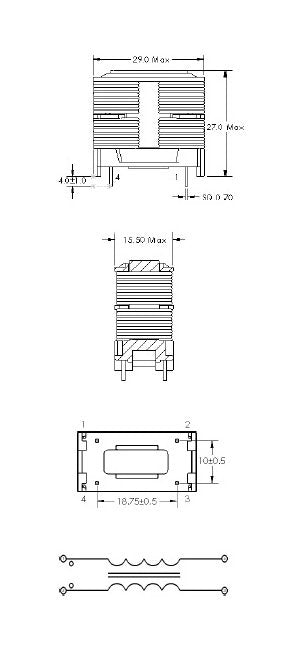

Specifications Height H

27 mm

Specifications Inductance

15 mH

Specifications Inductance Tolerance At 20c

+30 to -50 %

Specifications Length L

29.0 mm

Specifications Max Dcr

0.279 Ohm

Specifications Operating Temperature

-40 to 105 ÂºC

Specifications Pin Diameter

0.70 mm

Specifications Pin Diameter Tolerance

0.10

Specifications Pin Length

4.0 mm

Specifications Pin Length Tolerance

1.0 mm

Specifications Pin Mounting A

18.75

Specifications Pin Mounting B

10.0

Specifications Pin Mounting Tolerance

0.5 mm

Specifications Rated Current

1.9 A

Specifications Rated Voltage Ac

250 V

Specifications Time Hi Pot

2 sec

Specifications Type

Common-Mode

Specifications Stray Inductance

310 ÂµH

Specifications Weight

17 g

Specifications Width W

15.5 mm

CMF Series 15mH Common Mode Inductor
