CMF Series 27mH Common Mode Inductor

CMF Series 27mH Common Mode Inductor

IND-d9e18f

Enhanced CMF Series 27mH Inductance Common Mode Inductor for superior noise suppression and reliable performance.

$12.99
$12.99
Sale

Initiate Order

CMF Series 27mH Common Mode Inductor

CMF Series 27mH Common Mode Inductor

$12.99

Quantity: 1

Claim Your Seller Account

CMF Series 27mH Common Mode Inductor

CMF Series 27mH Common Mode Inductor

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

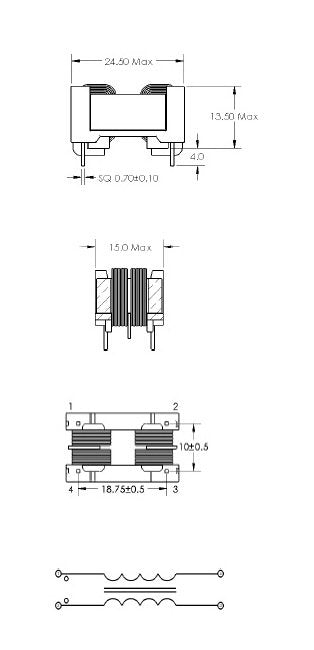

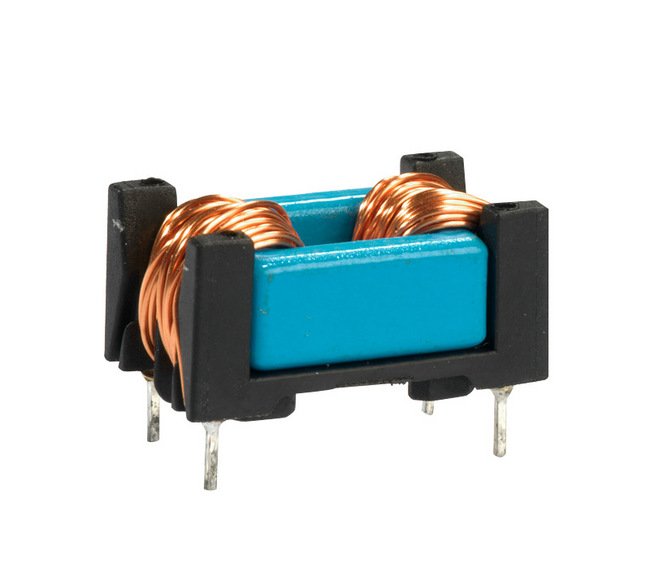

The CMF Series 27mH Inductance Common Mode Inductor is designed to provide exceptional common-mode suppression and minimize stray inductance to effectively reduce differential-mode noise. With a unique configuration combining the features of two components in one, this inductor ensures reliable performance. Measuring 24.5mm x 15.0mm x 13.5mm and weighing 9g, it offers a rated current of 0.9A and operates in a temperature range of -40 to 105°C. Ideal for applications requiring high-performance common-mode noise filtering.

Product Specifications

Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA
Specifications Height H
13.5 mm
Specifications Inductance
27 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
24.5 mm
Specifications Max Dcr
0.770 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Mounting A
19.5
Specifications Pin Mounting B
10.5
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
0.9 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
520 µH
Specifications Weight
9 g
Specifications Width W
15.0 mm
