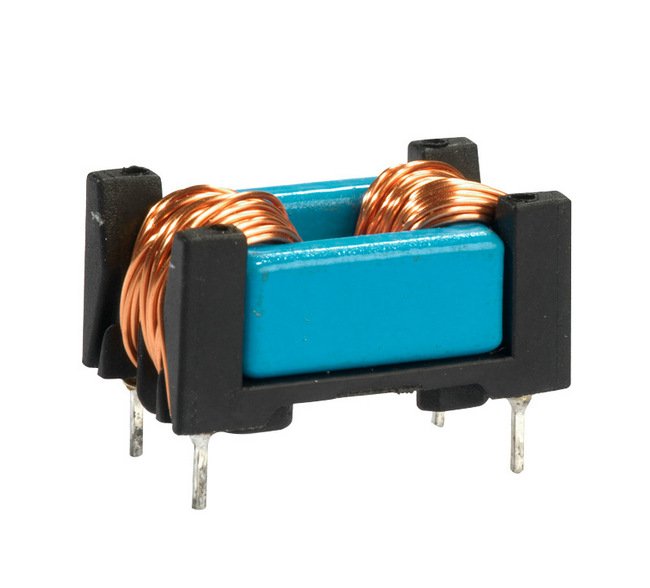

CMF Series 27mH Common Mode Inductor
CMF Series 27mH Common Mode Inductor
SKU:IND-86882d
High-performance 27mH Common Mode Inductor with exceptional noise suppression and compact design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMF Series 27mH Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMF Series 27mH Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 27mH Common Mode Inductor is designed for exceptional common-mode suppression, effectively combining the features of two components into one unit. With a rated current of 1.4A and maximum DCR of 0.440 Ohm, this inductor provides reliable performance in suppressing differential-mode noise. Its compact horizontal configuration, along with dimensions of 26.5mm x 24.8mm x 14mm and an operating temperature range of -40 to 105°C, makes it ideal for various applications. Additionally, with a rated voltage of 250V AC and compliance with climatic category standards, this inductor ensures both efficiency and durability in demanding environments.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

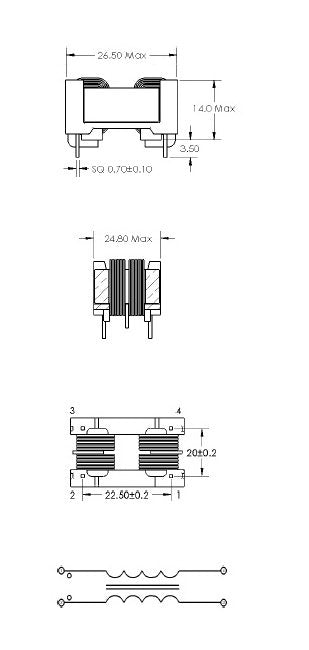

Specifications Height H
14 mm
Specifications Inductance
27 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
26.5 mm
Specifications Max Dcr
0.440 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
3.5 mm
Specifications Pin Mounting A
22.5
Specifications Pin Mounting B
20.0
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
1.4 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
550 µH
Specifications Weight
17 g
Specifications Width W
24.8 mm
