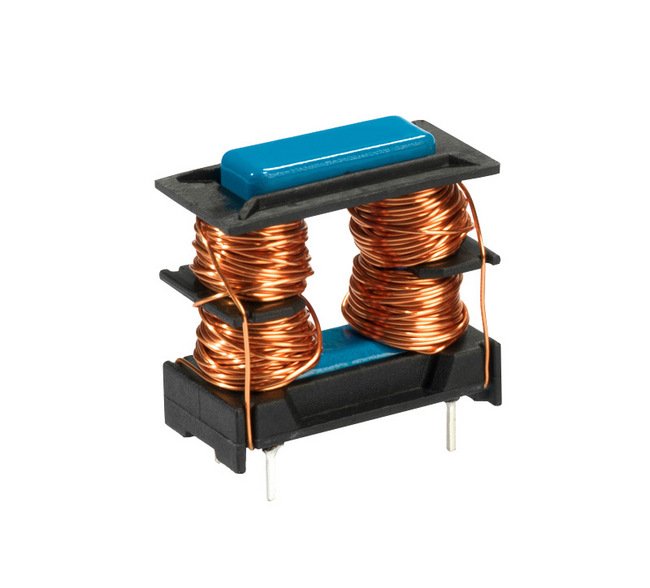

CMF Series 27mH Inductance Common Mode Inductor
CMF Series 27mH Inductance Common Mode Inductor
SKU:IND-18d2df
Efficiently suppress differential-mode noise with the CMF Series 27mH Common Mode Inductor. Ideal for consumer and institutional electronics.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CMF Series 27mH Inductance Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CMF Series 27mH Inductance Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 27mH Inductance Common Mode Inductor is designed to deliver exceptional common-mode suppression and stray inductance reduction for effective differential-mode noise suppression. Featuring a unique combination of features in a single component, this inductor ensures reliable performance in various applications. With a rated current of 1.4 A, max DCR of 0.440 Ohm, and an operating temperature range from -40 to 105 °C, this inductor is ideal for both consumer electronics and institutional equipment. Its compact vertical design with precise pin mounting offers easy integration and efficient operation, making it a versatile solution for noise mitigation.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Vertical
Specifications Current Hi Pot
5 mA
Specifications Height H
27 mm
Specifications Inductance
27 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %

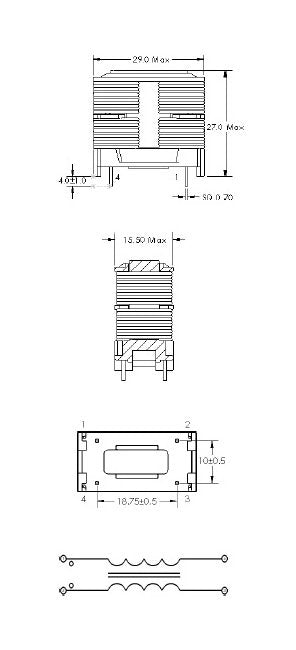

Specifications Length L
29.0 mm
Specifications Max Dcr
0.440 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Length Tolerance
1.0 mm
Specifications Pin Mounting A
18.75
Specifications Pin Mounting B
10.0
Specifications Pin Mounting Tolerance
0.5 mm
Specifications Rated Current
1.4 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
550 µH
Specifications Weight
17 g
Specifications Width W
15.5 mm
