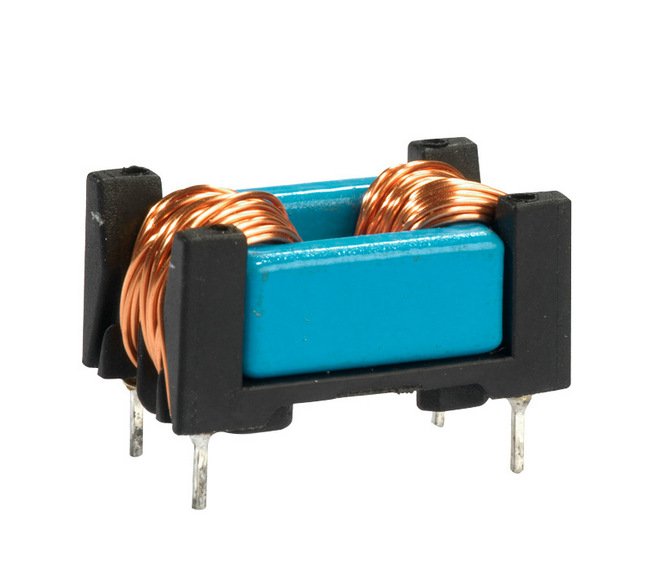

CMF Series 39mH Common Mode Inductor
CMF Series 39mH Common Mode Inductor
SKU:IND-a3d529
Experience exceptional common-mode noise suppression with the CMF Series 39mH Common Mode Inductor. Compact, reliable, and efficient.
Regular price
$13.99
Regular price
Sale price
$13.99
Unit price
per
Initiate Order
CMF Series 39mH Common Mode Inductor
$13.99
Quantity: 1
Claim Your Seller Account
CMF Series 39mH Common Mode Inductor
$13.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 39mH Common Mode Inductor offers exceptional common-mode suppression and stray inductance reduction, effectively combining the features of two components in one. With an inductance of 39mH, rated current of 1.2A, and maximum DCR of 0.696 Ohm, this inductor ensures reliable noise suppression in a compact horizontal configuration. Its high voltage and temperature ratings make it ideal for a wide range of applications, providing consistent performance in extreme conditions.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

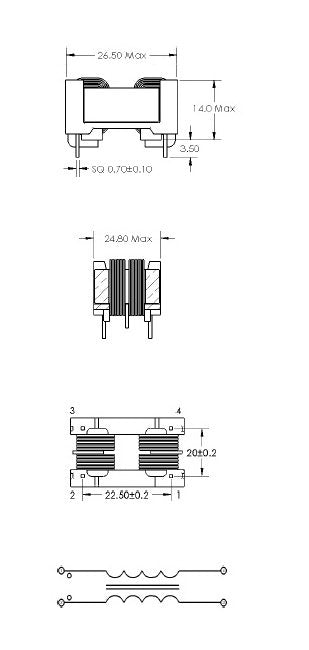

Specifications Height H
14 mm
Specifications Inductance
39 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
26.5 mm
Specifications Max Dcr
0.696 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
3.5 mm
Specifications Pin Mounting A
22.5
Specifications Pin Mounting B
20.0
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
1.2 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
800 µH
Specifications Weight
17 g
Specifications Width W
24.8 mm
