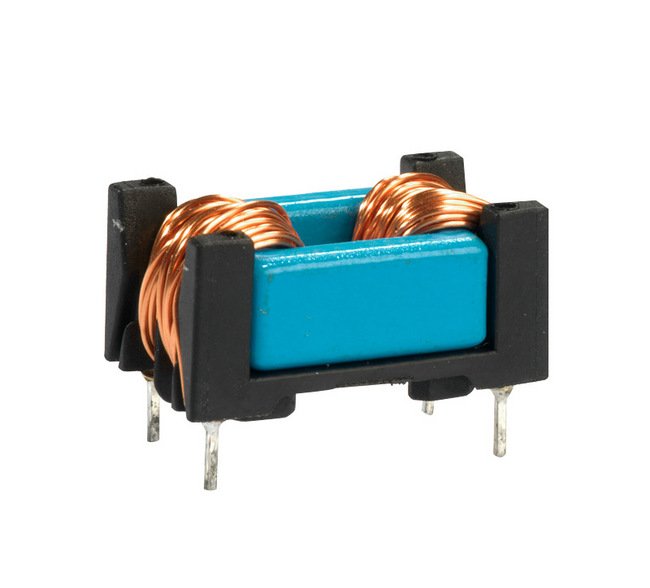

CMF Series 39mH Common Mode Inductor
CMF Series 39mH Common Mode Inductor
SKU:IND-448feb
Efficiently suppress common-mode noise with the CMF Series 39mH Common Mode Inductor, combining exceptional components into one for reliable performance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
CMF Series 39mH Common Mode Inductor
$12.99
Quantity: 1
Claim Your Seller Account
CMF Series 39mH Common Mode Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 39mH Common Mode Inductor excels in common-mode suppression and stray inductance reduction for effective differential-mode noise suppression. With a rated current of 0.8A and superior components combining into one, it offers exceptional performance in a compact horizontal configuration. Operating at temperatures from -40 to 105 ºC, this inductor meets stringent industry standards and is ideal for applications requiring reliable performance and compliance.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

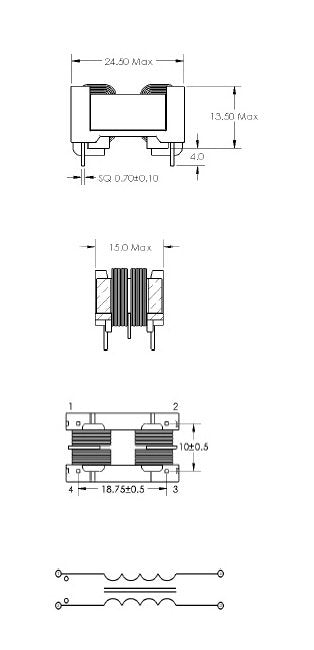

Specifications Height H
13.5 mm
Specifications Inductance
39 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
24.5 mm
Specifications Max Dcr
1.100 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Mounting A
19.5
Specifications Pin Mounting B
10.5
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
0.8 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
760 µH
Specifications Weight
9 g
Specifications Width W
15.0 mm
