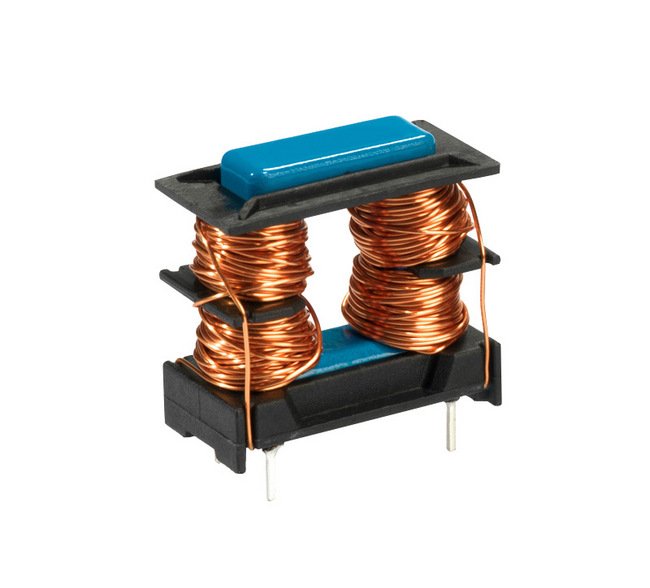

CMF Series 39mH Common Mode Inductor
CMF Series 39mH Common Mode Inductor
SKU:IND-695117
Experience exceptional common-mode suppression with the CMF Series 39mH Inductor. Compact, efficient, and compliant with industry standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
CMF Series 39mH Common Mode Inductor
$14.99
Quantity: 1
Claim Your Seller Account
CMF Series 39mH Common Mode Inductor
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 39mH Common Mode Inductor is designed to provide exceptional common-mode suppression and minimize stray inductance effectively suppressing differential-mode noise. With a rated current of 1.2 A, typical stray inductance of 800 µH, and a maximum DCR of 0.696 Ohm, this vertical configuration inductor offers a compact solution combining the features of two separate components in one. Its robust design, operating temperature range of -40 to 105°C, and compliance with industry standards make it ideal for applications requiring reliable noise suppression and efficiency.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Vertical
Specifications Current Hi Pot
5 mA

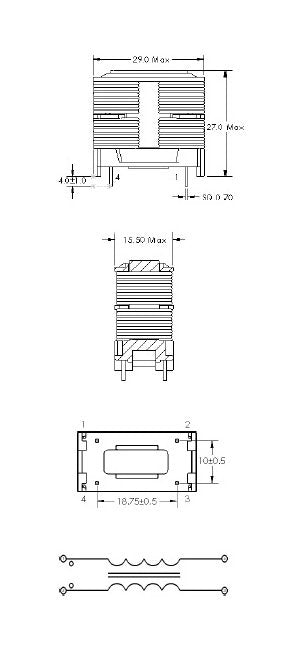

Specifications Height H
27 mm
Specifications Inductance
39 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
29.0 mm
Specifications Max Dcr
0.696 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Length Tolerance
1.0 mm
Specifications Pin Mounting A
18.75
Specifications Pin Mounting B
10.0
Specifications Pin Mounting Tolerance
0.5 mm
Specifications Rated Current
1.2 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
800 µH
Specifications Weight
17 g
Specifications Width W
15.5 mm
