CMF Series 47 mH Common Mode Inductor
CMF Series 47 mH Common Mode Inductor
SKU:IND-876559
High-performance CMF Series 47 mH Common Mode Inductor for exceptional noise suppression and efficient operation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CMF Series 47 mH Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CMF Series 47 mH Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

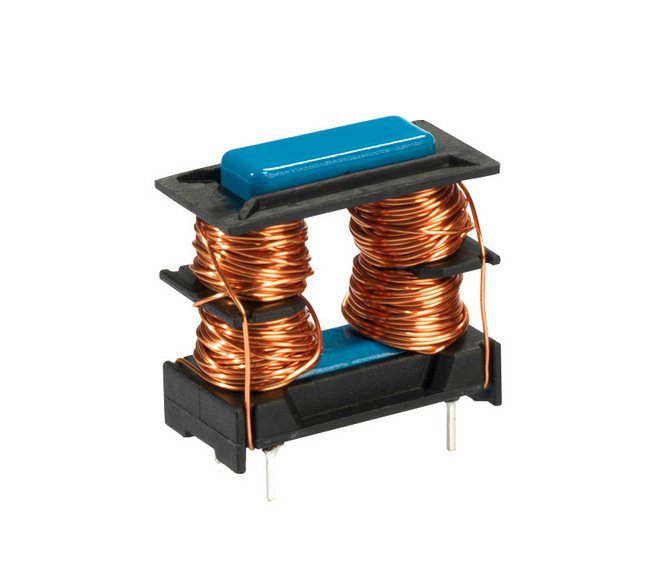

The CMF Series 47 mH Common Mode Inductor is a high-performance component designed to provide exceptional common-mode suppression and effectively reduce stray inductance to suppress differential-mode noise. Combining the features of two separate components into one, this inductor ensures reliable operation in a variety of applications. With a rated current of 1.1 A and a maximum DCR of 0.804 Ohm, it offers superior performance and efficiency. The inductor is built with a vertical configuration, measuring 29.0mm in length, 15.5mm in width, and 27mm in height, making it compact and versatile for diverse installation needs.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Vertical
Specifications Current Hi Pot
5 mA
Specifications Height H
27 mm
Specifications Inductance
47 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %

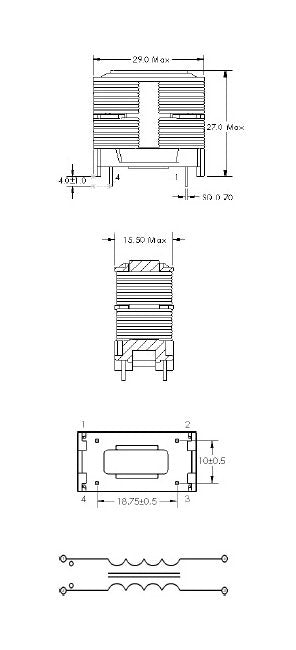

Specifications Length L
29.0 mm
Specifications Max Dcr
0.804 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Length Tolerance
1.0 mm
Specifications Pin Mounting A
18.75
Specifications Pin Mounting B
10.0
Specifications Pin Mounting Tolerance
0.5 mm
Specifications Rated Current
1.1 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
970 µH
Specifications Weight
17 g
Specifications Width W
15.5 mm
