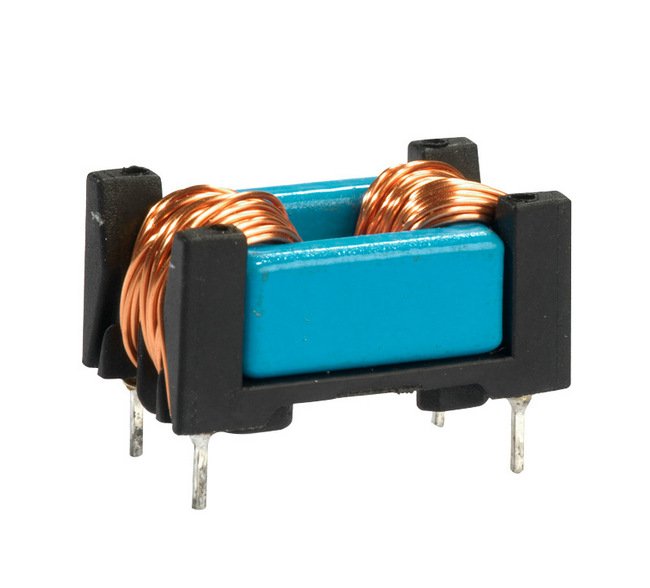

CMF Series 47mH Common Mode Inductor
CMF Series 47mH Common Mode Inductor
SKU:IND-7b5760
Experience exceptional common-mode suppression with the CMF Series 47mH Inductor. Reduce stray inductance for noise-free operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMF Series 47mH Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMF Series 47mH Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 47mH Common Mode Inductor is expertly designed to provide unparalleled common-mode suppression while effectively reducing stray inductance to eliminate differential-mode noise. With a rated current of 1.1 A and a max DCR of 0.804 Ohm, this inductor combines the functionality of two components into one space-saving solution. Its horizontal configuration and compact dimensions make it ideal for applications requiring high-performance electromagnetic interference mitigation.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

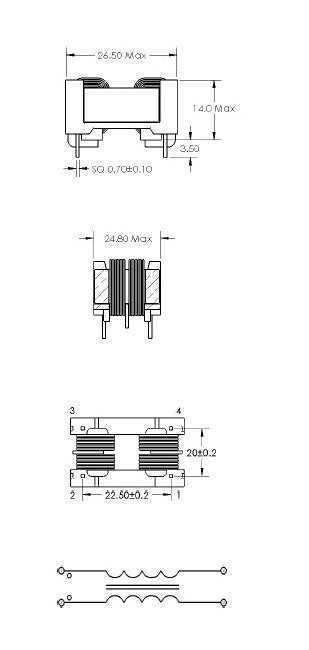

Specifications Height H
14 mm
Specifications Inductance
47 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
26.5 mm
Specifications Max Dcr
0.804 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
3.5 mm
Specifications Pin Mounting A
22.5
Specifications Pin Mounting B
20.0
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
1.1 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
970 µH
Specifications Weight
17 g
Specifications Width W
24.8 mm
