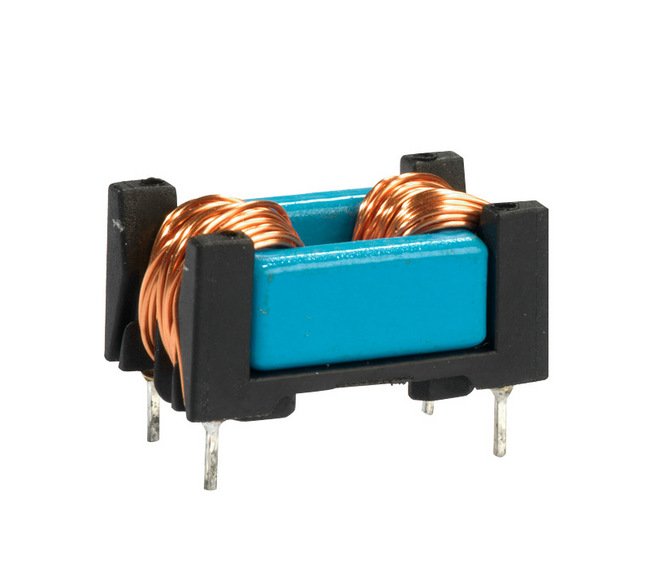

CMF Series 68 mH Common Mode Inductor
CMF Series 68 mH Common Mode Inductor
SKU:IND-01bec9
Enhance noise suppression with the CMF Series 68 mH Common Mode Inductor. Rated up to 0.6 A with compact design. Ideal for effective noise reduction.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
CMF Series 68 mH Common Mode Inductor
$12.99
Quantity: 1
Claim Your Seller Account
CMF Series 68 mH Common Mode Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMF Series 68 mH Common Mode Inductor is designed to provide exceptional common-mode suppression and reduce stray inductance for effective noise suppression. With a rated current of 0.6 A, typical stray inductance of 1340 µH, and a compact horizontal configuration, this inductor combines the functionality of two components in one, offering reliable performance in a wide range of operating temperatures from -40 to 105 ºC. Ideal for applications requiring reliable common-mode noise filtering and compliance with industry standards.
Product Specifications
Specifications Alternating Current Ac Voltage Hi Pot
2000
Specifications Clearance And Creepage Distance
>3 mm
Specifications Climatic Category
40/125/56 (to IEC 60068-1)
Specifications Configuration Type
Horizontal
Specifications Current Hi Pot
5 mA

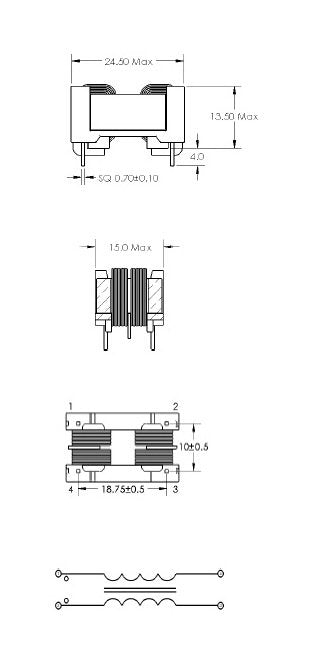

Specifications Height H
13.5 mm
Specifications Inductance
68 mH
Specifications Inductance Tolerance At 20c
+30 to -50 %
Specifications Length L
24.5 mm
Specifications Max Dcr
1.970 Ohm
Specifications Operating Temperature
-40 to 105 ºC
Specifications Pin Diameter
0.70 mm
Specifications Pin Diameter Tolerance
0.10
Specifications Pin Length
4.0 mm
Specifications Pin Mounting A
19.5
Specifications Pin Mounting B
10.5
Specifications Pin Mounting Tolerance
0.2 mm
Specifications Rated Current
0.6 A
Specifications Rated Voltage Ac
250 V
Specifications Time Hi Pot
2 sec
Specifications Type
Common-Mode
Specifications Stray Inductance
1340 µH
Specifications Weight
9 g
Specifications Width W
15.0 mm
