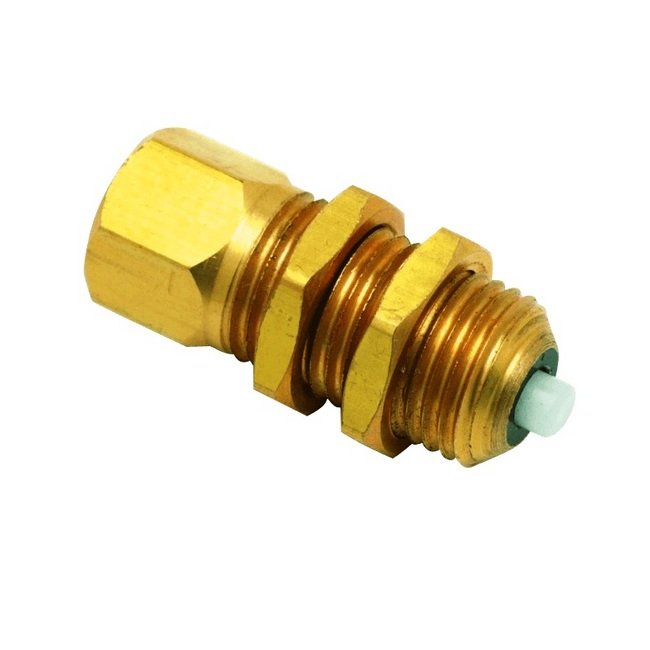

CMPI Series is a single-pin 5/32" bore pressure indicator made of Brass. When the white pin is extended, the indicator is on. In addition, it is mountable on a maximum panel thickness of 3/16". The maximum input pressure is 150 psi and is recommended for air only. The mounting threads are 10-32 UNF and require a 1/4" NPT diameter mounting hole. Furthermore, the hex measures 5/16". The indicator is supplied with 2 panel mounting nuts. 40-micron filtration is recommended.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Bore Size
5/32 in
Technical Specs Material
Brass
Technical Specs Maximum Input Pressure
150 psi
Technical Specs Maximum Panel Thickness
3/16 in
Technical Specs Mounting Hole Diameter
1/4 in
Technical Specs Mounting Hole Thread
National Pipe Thread (NPT)
Technical Specs Series
CMPI
Technical Specs Thread Size
10-32
Technical Specs Thread Type
Unified National Fine (UNF)
