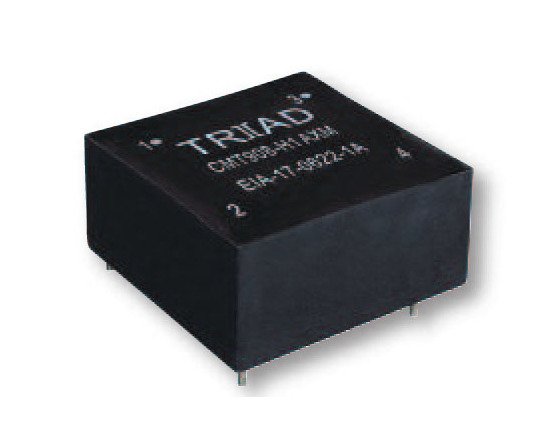

CMT908 Series Encapsulated Toroidal Inductor
CMT908 Series Encapsulated Toroidal Inductor
SKU:IND-178028
Reliable EMI suppression inductor for power supplies, meeting regulatory standards for noise reduction and interference elimination.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CMT908 Series Encapsulated Toroidal Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CMT908 Series Encapsulated Toroidal Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMT908 Series Encapsulated Toroidal Inductor offers reliable common mode EMI suppression, ideal for power supplies to eliminate common noise and provide effective differential mode filtering. Designed to meet stringent regulatory requirements, these inductors reduce AC line transmitted interference from high-frequency switching power supplies. Constructed with UL rated 130 °C materials, these compact inductors ensure optimal performance and durability for institutional and government procurement needs.
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

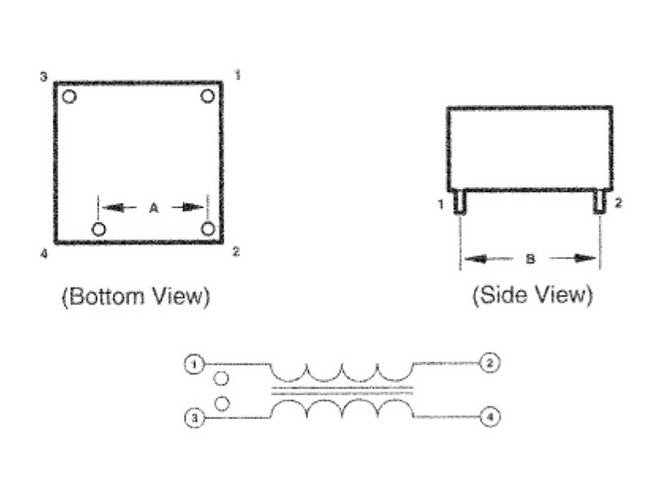

Specifications Dimension A
1.08 in
Specifications Dimension B
1.28 in
Specifications Dimension H
0.80 in
Specifications Dimension L
1.5 in
Specifications Dimension W
1.5 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.120 Ohm
Specifications Min Inductance
8.00 mH
Specifications Min Leakage
90.0 µH
Specifications Rms Current
3.20 A
Specifications Weight
0.120 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
