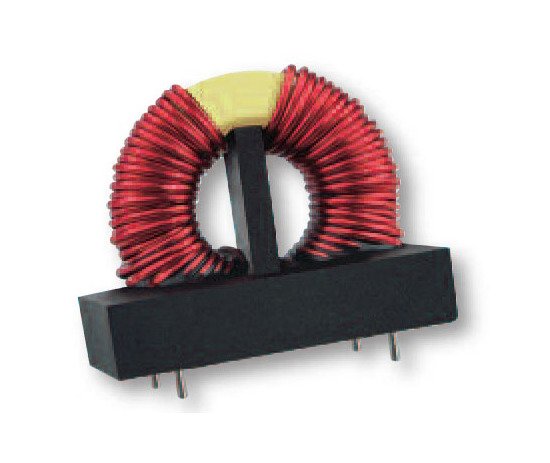

CMT908 Series Encapsulated Toroidal Inductor
CMT908 Series Encapsulated Toroidal Inductor
SKU:IND-18b61e
Dependable CMT908 Series Toroidal Inductor for EMI suppression and regulatory compliance in power supplies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMT908 Series Encapsulated Toroidal Inductor offers reliable common mode EMI suppression, essential for noise elimination in power supplies. These inductors excel at differential mode filtering and meet stringent regulatory requirements, minimizing AC line interference. Designed for placement near input sources, they are compact, constructed with UL-rated 130°C materials, and feature a 8.00 mH inductance, 3.20 A RMS current, and 0.120 Ohm max DC resistance, ensuring optimal performance and compliance.
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

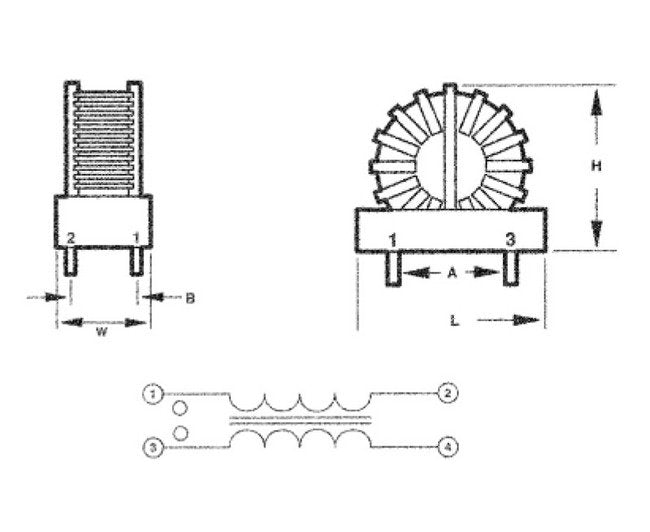

Specifications Dimension A
0.900 in
Specifications Dimension B
0.6 in
Specifications Dimension H
1.50 in
Specifications Dimension L
1.45 in
Specifications Dimension W
0.800 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.120 Ohm
Specifications Min Inductance
8.00 mH
Specifications Min Leakage
90.0 µH
Specifications Rms Current
3.20 A
Specifications Weight
0.08 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
