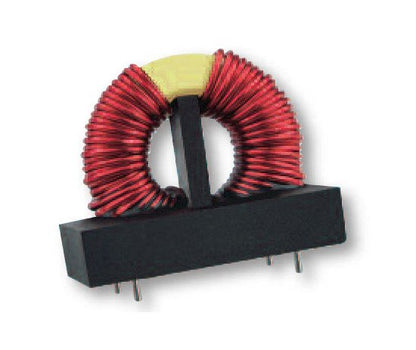

CMT908 Series Encapsulated Toroidal Inductor
CMT908 Series Encapsulated Toroidal Inductor
SKU:IND-a1c252
Dependable CMT908 Series toroidal inductor for EMI suppression and noise elimination in power supplies, meeting multiple industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMT908 Series Encapsulated Toroidal Inductor ensures reliable common mode EMI suppression and differential mode filtering in power supplies, effectively minimizing AC line interference. With a minimum inductance of 2.00 mH and a RMS current of 7.50 A, these inductors are designed to meet regulatory requirements such as CSA, IEC, UL, and VDE standards. Hi-pot tested at 2500 VRMS and constructed with UL rated 130 ºC materials, they deliver exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

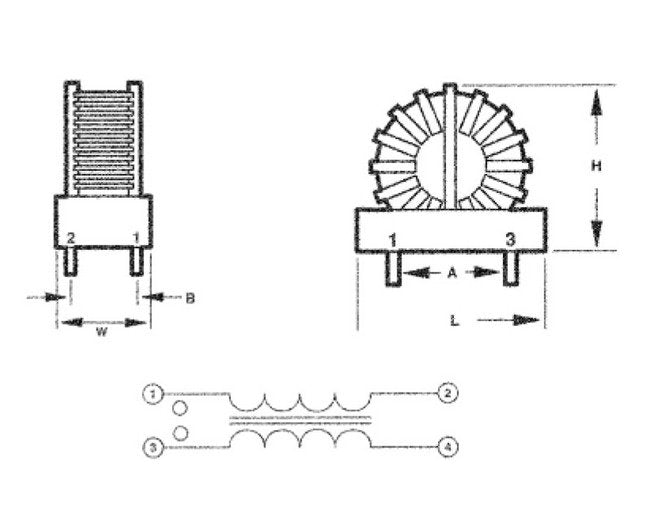

Specifications Dimension A
0.900 in
Specifications Dimension B
0.6 in
Specifications Dimension H
1.50 in
Specifications Dimension L
1.45 in
Specifications Dimension W
0.800 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.020 Ohm
Specifications Min Inductance
2.00 mH
Specifications Min Leakage
25.0 µH
Specifications Rms Current
7.50 A
Specifications Weight
0.08 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
