CMT908 Series Encapsulated Toroidal Inductor
CMT908 Series Encapsulated Toroidal Inductor
SKU:IND-c2e3d1
Dependable EMI suppression inductor meeting CSA, IEC, UL, and VDE standards for noise elimination in power supplies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

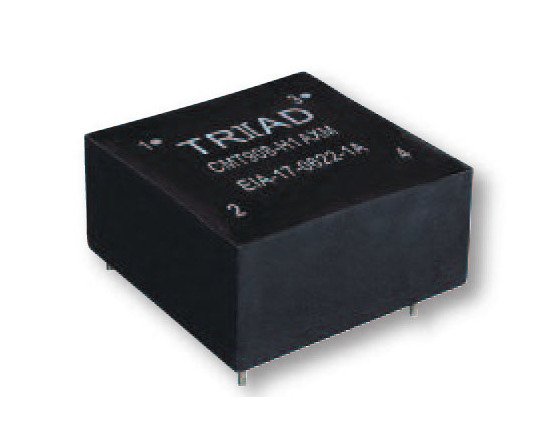

The CMT908 Series Encapsulated Toroidal Inductor offers highly dependable Triad common mode EMI suppression, essential for noise elimination in various power supplies. Designed to meet regulatory requirements including CSA, IEC, UL, and VDE standards, this compact inductor minimizes AC line interference from high-frequency switching power supplies. With a minimum inductance of 4.00 mH, RMS current of 5.20 A, and max DC resistance of 0.040 Ohm, it ensures efficient differential mode filtering. The inductor is hi-pot tested at 2500 VRMS and is constructed with UL rated 130°C materials for reliable performance.
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

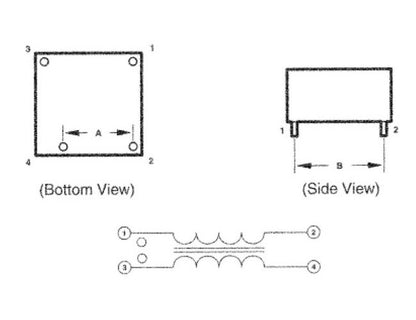

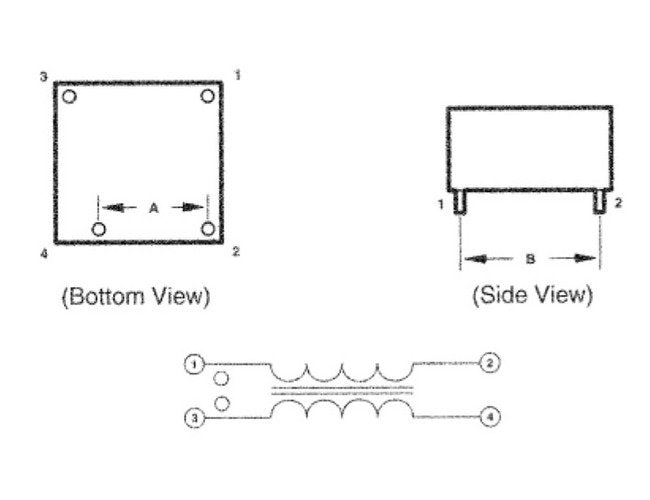

Specifications Dimension A
1.08 in
Specifications Dimension B
1.28 in
Specifications Dimension H
0.80 in
Specifications Dimension L
1.5 in
Specifications Dimension W
1.5 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.040 Ohm
Specifications Min Inductance
4.00 mH
Specifications Min Leakage
45.0 µH
Specifications Rms Current
5.20 A
Specifications Weight
0.120 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
