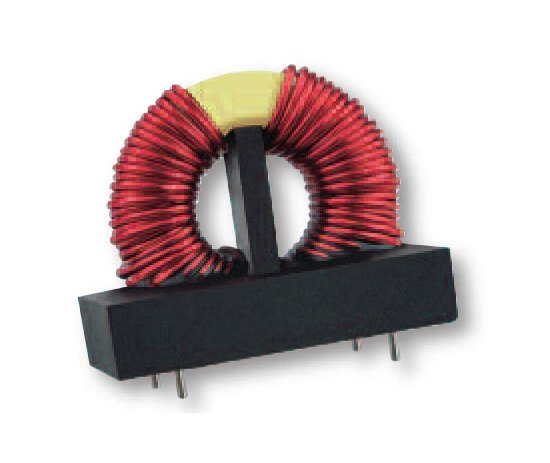

CMT908 Series Encapsulated Toroidal Inductor
CMT908 Series Encapsulated Toroidal Inductor
SKU:IND-8a574a
Dependable EMI suppression inductor meeting CSA, IEC, UL, VDE standards for power supplies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Claim Your Seller Account
CMT908 Series Encapsulated Toroidal Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMT908 Series Encapsulated Toroidal Inductor ensures highly dependable common mode EMI suppression in various power supplies, eliminating noise across all lines. With a minimum inductance of 4.00 mH, RMS current of 5.20 A, and compact dimensions, these inductors meet CSA, IEC, UL, and VDE standards. Tested at 2500 VRMS hi-pot, and designed for a 40°C temperature rise, they provide efficient differential mode filtering to minimize AC line interference.
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

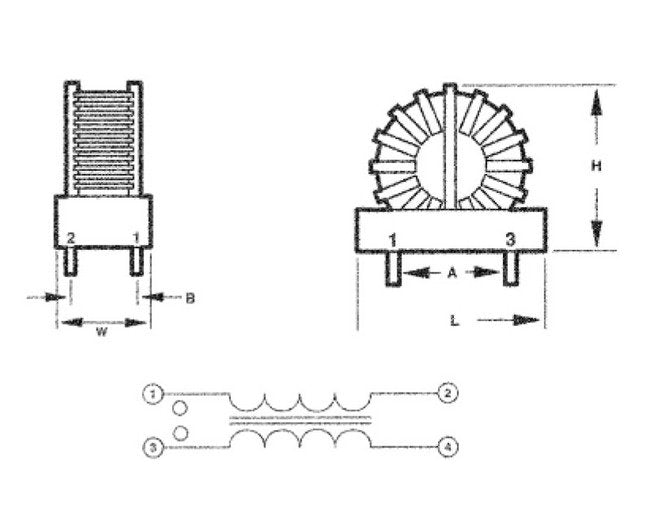

Specifications Dimension A
0.900 in
Specifications Dimension B
0.6 in
Specifications Dimension H
1.50 in
Specifications Dimension L
1.45 in
Specifications Dimension W
0.800 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.040 Ohm
Specifications Min Inductance
4.00 mH
Specifications Min Leakage
45.0 µH
Specifications Rms Current
5.20 A
Specifications Weight
0.08 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
