CMT908 Series Encapsulated Toroidal Inductor
CMT908 Series Encapsulated Toroidal Inductor
SKU:IND-acacf5
High-performance common mode inductor for power supply noise elimination and compliance with regulatory standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CMT908 Series Encapsulated Toroidal Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CMT908 Series Encapsulated Toroidal Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

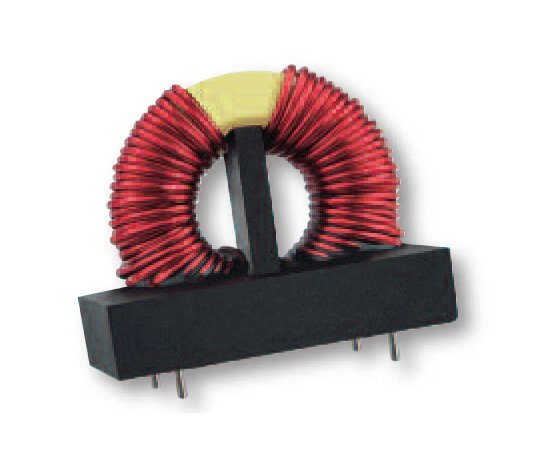

The CMT908 Series Encapsulated Toroidal Inductor is a high-performance solution for common mode EMI suppression in various power supplies. Designed to eliminate common noise across all lines and provide efficient differential mode filtering, these inductors meet stringent regulatory requirements. With a minimum inductance of 16.00 mH, RMS current of 2.60 A, and max DC resistance of 0.160 Ohm, these compact inductors are ideal for applications requiring reliable noise reduction and interference control. Constructed with UL-rated 130°C materials, they ensure durability and performance.
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

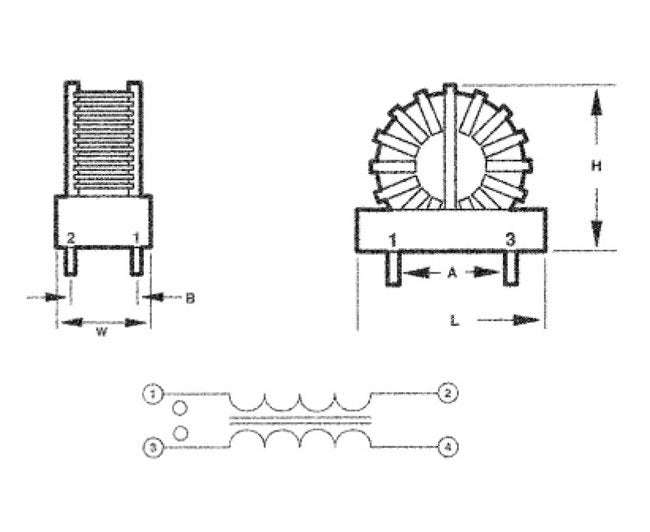

Specifications Dimension A
0.900 in
Specifications Dimension B
0.6 in
Specifications Dimension H
1.50 in
Specifications Dimension L
1.45 in
Specifications Dimension W
0.800 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.160 Ohm
Specifications Min Inductance
16.00 mH
Specifications Min Leakage
180.0 µH
Specifications Rms Current
2.60 A
Specifications Weight
0.08 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
