Cold Rolled Steel Chip Deflector

Name: Cold Rolled Steel Chip Deflector
Brand: Bermar Associates, Inc.
SKU: STA-fdd9b9
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-fdd9b9

Protect machine ways with precision using the durable Cold Rolled Steel Chip Deflector, ideal for hot chip applications and customizable for your needs.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

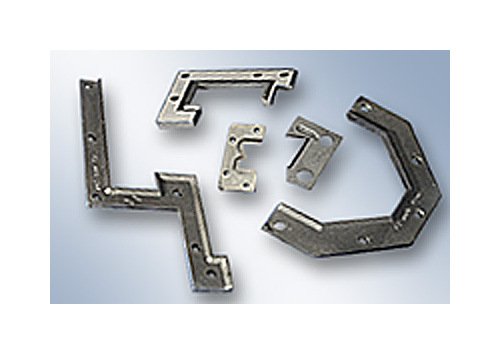

The Cold Rolled Steel Chip Deflector by Bermar Associates, Inc. is expertly crafted from 16 gauge cold-rolled steel, ensuring superior durability and performance. Designed to fit specific way wipers, this chip deflector serves as an effective barrier against metal chips, safeguarding machine ways and wipers from damage. Ideal for hot chip applications, it doubles as a stiffener for enhanced strength. Offering customization options, this deflector can be fabricated to meet your specific size requirements, with or without hole patterns. Easy to mount following provided instructions, this deflector guarantees protection and longevity in industrial settings.

Product Specifications

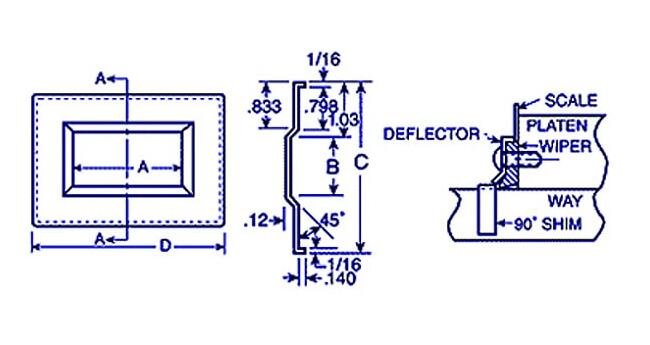

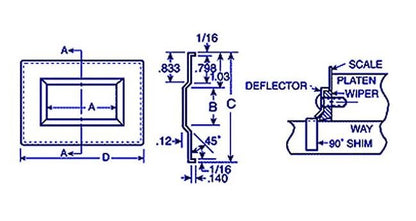

Mounting Instructions Mounting Instructions

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

2.625 in

Specifications Dimension B

1.125 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
