Cold-Rolled Steel Chip Deflector - Standard Size

Name: Cold-Rolled Steel Chip Deflector - Standard Size
Brand: Bermar Associates, Inc.
SKU: STA-939e23
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-939e23

Protect machine ways with precision using our 16-gauge cold-rolled steel chip deflector - ideal for hot chip applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

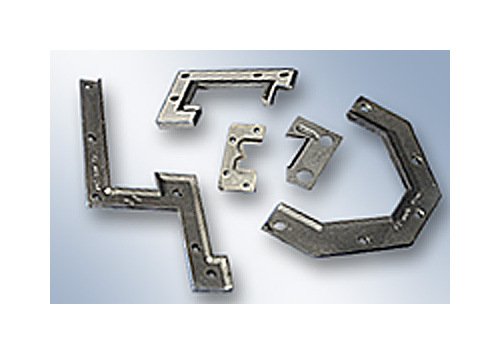

The 4.125-inch Dimension A and 2.125-inch Dimension B Standard Chip Deflector from Bermar Associates, Inc. is crafted from durable 16 gauge cold-rolled steel. Designed to protect machine ways and way wipers from metal chip damage, this deflector is ideal for hot chip applications and provides additional stiffness for enhanced strength. With customizable fabrication options and easy mounting instructions, this chip deflector is a versatile solution for industrial applications.

Product Specifications

Mounting Instructions Mounting Instructions

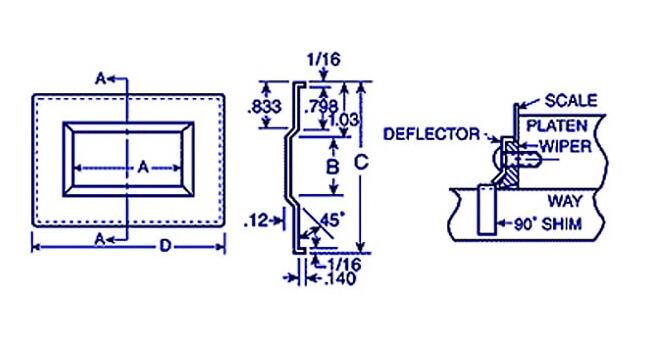

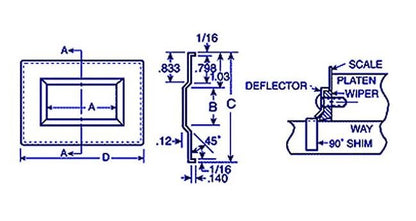

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

4.125 in

Specifications Dimension B

2.125 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
