Color Liquid Crystal Display (LCD) Touch Screen Control Panels

Name: Color Liquid Crystal Display (LCD) Touch Screen Control Panels
Brand: Ohio Medical Parts
SKU: COL-7501e5
Price: 49.99 USD
Availability: OutOfStock

SKU:COL-7501e5

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

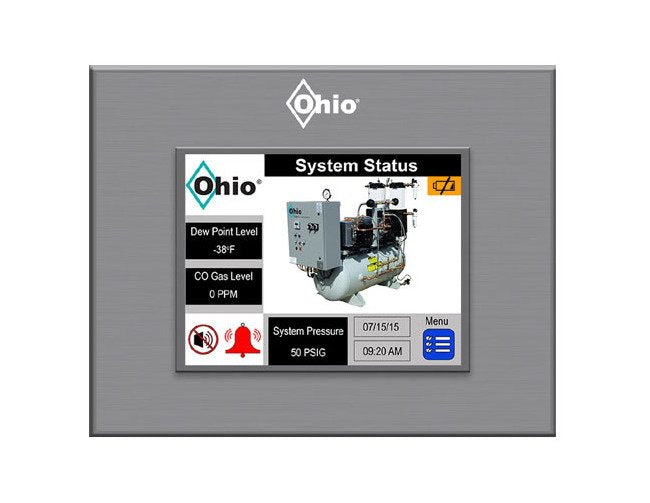

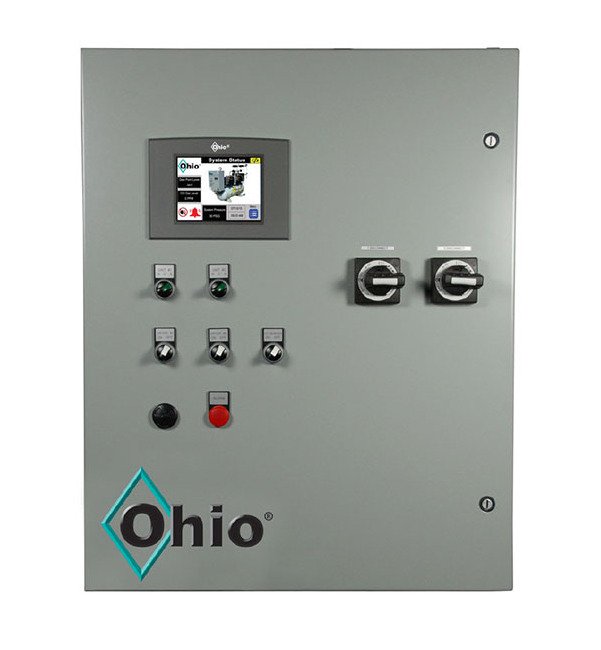

The Ohio® Medical LCD Touch Screen Control Panel offers quick and easy set up as well as crystal clear monitoring of medical system conditions. A user defined password leads the system operator through all necessary set-up procedures.This is the new standard for all Ohio® Medical vacuum and air compressor systems.

Product Specifications

Features And Benefits

Color LCD Touch ScreenCrystal clear identification of gases and alarm conditions via a vivid 5.7" color LCD touch screen (10" LCD display optional)Screen brightness is field adjustable for enhanced visibility in all lighting conditions Highly reliable - pressure activated touch-screenEasy set-up - No push buttons or hidden toggle switches to mess with, allowing for quick and easy set-up via the front touch screen panelMeets NFPA® 99 Health Care Facilities CodeConnection to Building Management Systems (BMS) via Dry ContactsDry contacts identify alarm conditions for high temperature, lag, high dew point and carbon monoxide (CO) gas statusModbus CommunicationsModbus communications include alarm conditions for: system pressure, dew point, and CO gas statusOptional communication protocols include Ethernet and BacNetUser Defined, Password Protected OptionsEnglish or SpanishSecurity - individual set-up and maintenance screen passwords protect user/installer settingsDate and time settingsSystem pressure settings for Lead/Lag functionsPump alternation timeMaintenance Menu & AlertsStreamlined Maintenance Menu listing replacement items and maintenance durations Visual maintenance warnings (flashing red/white) when items are past due for service

Specifications Certification

Underwriter Laboratories (UL) 508A

Specifications Display Size

5.7 in

Specifications Display Size Optional

10 in

Specifications Type

Touch Screen

System Status And Setting

System StatusAlarm conditions clearly identified via audible and visual indicatorsEasy monitoring of system pressure (psiG, inHg), Dew Point (ºF) and CO concentration (PPM)Battery life with indicatorCO, Dew Point and pressure tracking over time (Trending Capabilities)System operational status and accumulated run-time monitoringSystem SettingsAdjustable start and stop pressure (lead and lag) minimum run time (MRT), and alternation timeInput / Output StatusMonitoring of inputs/outputs for troubleshooting purposesAlarm StatusAdvanced alarm condition monitoringEasy access to the reset function to deactivate an alarm and return to normal condition once the condition is correctedAlarm HistoryAlarm log with dates and timesInformationEasy access to system information: Model Number, Sales Order Number, Program Name and Shipping Date
