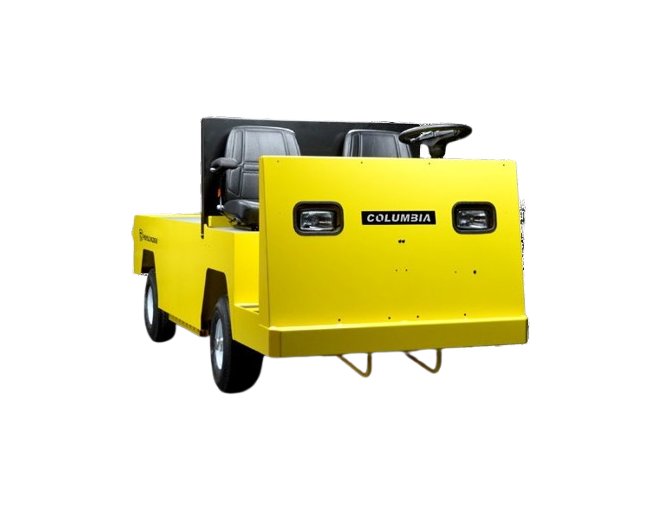

Columbia 1850 lb Vehicle Weight Payloader Carrier
Columbia 1850 lb Vehicle Weight Payloader Carrier
SKU:PAY-e64cdc
Powerful and reliable Columbia 1850 lb Payloader Carrier for versatile applications with advanced safety features and high towing capacity.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Columbia 1850 lb Vehicle Weight Payloader Carrier
$8,499.99
Quantity: 1
Claim Your Seller Account
Columbia 1850 lb Vehicle Weight Payloader Carrier
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Columbia 1850 lb Vehicle Weight Payloader Carrier is a versatile solution for various applications, with a rated capacity of 4200 to 5200 lb and towing capacity up to 14,000 lb. Powered by a NEMA Class H Temperature Rated Motor, it boasts a programmable solid-state controller, regenerative braking, and a heavy-duty welded steel body. With safety features like directional control keyswitch and optional accessories such as a reverse warning alarm, this payloader ensures efficiency and reliability for transporting goods. Designed with a focus on durability and performance, Columbia's Payloader Carrier is an ideal choice for institutional and government buyers seeking top-tier quality.
Product Specifications
Additional Information
Need to carry or tow more? Have a unique application requirement?Don't worry, Columbia has been building Payloaders for more than 60 years.Just let us know what you want.
Body Accessories
Battery Discharge IndicatorHornReverse Warning AlarmDriver Seat Power Interlock Switchcomposite Deck Board With High Density Polyethylene Overlay
Body Body
Welded Heavy-Duty, 12-Gauge Structural Steel Smooth Plate Body
Body Lighting
Dual Recessed Head, Tail and Brake Lights
Body Passenger Capacity
Two with Up to Four (Optional 2nd Row Seat)
Body Seating
Adjustable Bucket Seats with Arm Rests
Chassis Brakes
4 WheelHydraulic Drum with 10" Front RotorsHand Operated Parking Brake
Chassis Frame
10 Gauge Steel
Chassis Load Range
E
Chassis Ply Rating
10
Chassis Steering
Automotive Steering Wheel to Heavy-Duty Worm and Roller Gear
Chassis Suspension
Independent Leaf Springs
Chassis Tire Size
5.0 x 8 in
Chassis Tire Type
Pneumatic

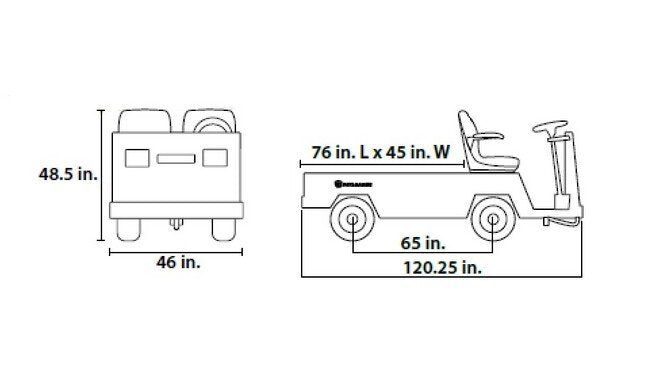

Dimensions Ground Clearance
4.5 in
Dimensions Load Bed Height
29 in
Dimensions Step Height
16.5 in
Note
Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.All specifications are subject to change without notice.
Performance Curb To Curb Turning Radius
264 in
Performance Intersecting Aisle Turning Radius
92 in
Performance Maximum Forward Speed
12 mph
Performance Range
0 to 30 mil
Power Train Batteries
Eight 6 Volt, Heavy-Duty, 232 Amp Hour Deep Cycle
Power Train Charger
Built In, Micro-Processor Control, Fully Sealed, Anti-Drive Away Interlock, 110-240 VAC, 50 / V60 HZ
Power Train Controller Rating
400 A
Power Train Controller Type
Programmable, Solid State, Reduced Speed Reverse with Diagnostic LED & Calibrator Interface
Power Train Directional Control
Dash-Mounted Safety Directional Keyswitch
Power Train Drive Unitdifferential
Chain Drive, Oil Bath, Helical Gears, 12.52:1 Final Gear Ratio
Power Train Motor
NEMA Class H Temperature Rated Separately Excited Motor
Power Train Motor Braking Mode
Regenerative and Pedal Proportional Braking with Top Speed Limiting
Power Train Optional Controller Rating
500 A
Power Train Power At 1750 Revolutions Per Minute Rpm Speed
15.3 hp
Technical Specs Brands
Columbia
Weight And Capacity Rated Capacity
4,200 to 5,200 lb
Weight And Capacity Towing Capacity
10,000 to 14,000 lb
Weight And Capacity Vehicle Weight
1,850 lb
