Columbia 2400-5200 lbs Payloader Carrier
Columbia 2400-5200 lbs Payloader Carrier
SKU:PAY-4d2bc7
Meet all your hauling and towing needs effortlessly with the Columbia Payloader Carrier, delivering power, durability, and safety in one package.
Regular price
$9,999.99
Regular price
Sale price
$9,999.99
Unit price
per
Initiate Order
Columbia 2400-5200 lbs Payloader Carrier
$9,999.99
Quantity: 1
Claim Your Seller Account
Columbia 2400-5200 lbs Payloader Carrier
$9,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Columbia Payloader Carrier is a versatile powerhouse designed to meet a diverse range of needs from hauling heavy loads to towing with ease. With a maximum forward speed of 14 mph and a towing capacity of up to 6,500 lbs, this carrier provides exceptional performance. Equipped with a NEMA Class H Temperature Rated Motor and eight heavy-duty 6 Volt deep cycle batteries, it ensures reliable operation. The welded heavy-duty steel body, dual recessed lighting, and programmable solid-state controller guarantee both durability and safety. Ideal for various applications, this Columbia Payloader Carrier offers unrivaled efficiency and performance.
Product Specifications
Additional Information
Need to carry or tow more? Have a unique application requirement?Don't worry, Columbia has been building Payloaders for more than 60 years.Just let us know what you want.
Body Accessories
Battery Discharge IndicatorHornReverse Warning AlarmDriver Seat Power Interlock Switchcomposite Deck Board With High Density Polyethylene Overlay
Body Body
Welded Heavy-Duty, 12-Gauge Structural Steel Smooth Plate Body
Body Lighting
Dual Recessed Head, Tail and Brake Lights
Body Passenger Capacity
Two with Up to Four (Optional 2nd Row Seat)
Body Seating
Adjustable Bucket Seats with Arm Rests
Chassis Brakes
DualRear Hydraulic DrumHand Operated Parking Brake with Interlock
Chassis Frame
10 Gauge Steel
Chassis Load Range
D
Chassis Ply Rating
8
Chassis Steering
Automotive Steering Wheel to Heavy-Duty Worm and Roller Gear
Chassis Suspension
Independent Leaf Springs
Chassis Tire Size
5.70 x 8 in
Chassis Tire Type
Pneumatic

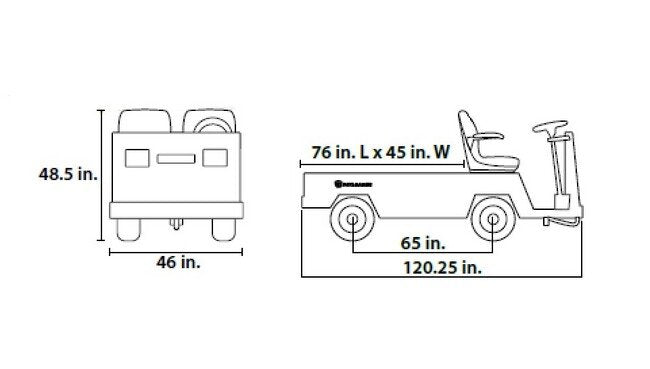

Dimensions Ground Clearance
4.5 in
Dimensions Load Bed Height
29 in
Dimensions Step Height
16.5 in
Note
Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.All specifications are subject to change without notice.
Performance Curb To Curb Turning Radius
264 in
Performance Intersecting Aisle Turning Radius
92 in
Performance Maximum Forward Speed
14 mph
Performance Range
0 to 30 mil
Power Train Batteries
Eight 6 Volt, Heavy-Duty, 232 Amp Hour Deep Cycle
Power Train Charger
Built In, Micro-Processor Control, Fully Sealed, Anti-Drive Away Interlock, 110-240 VAC, 50 / V60 HZ
Power Train Controller Rating
400 A
Power Train Controller Type
Programmable, Solid State, Reduced Speed Reverse with Diagnostic LED & Calibrator Interface
Power Train Directional Control
Dash-Mounted Safety Directional Keyswitch
Power Train Drive Unitdifferential
Direct Drive, Oil Bath, Helical Gears, 10.37:1
Power Train Motor
NEMA Class H Temperature Rated Separately Excited Motor
Power Train Motor Braking Mode
Regenerative and Pedal Proportional Braking with Top Speed Limiting
Power Train Power At 1750 Revolutions Per Minute Rpm Speed
15.3 hp
Technical Specs Brands
Columbia
Weight And Capacity Rated Capacity
2,400 lb
Weight And Capacity Towing Capacity
6,500 lb
Weight And Capacity Vehicle Weight
1,690 lb
