Column Mast Supported Jib Crane 800 CBM - 6000 lbs Capacity
Column Mast Supported Jib Crane 800 CBM - 6000 lbs Capacity
SKU:REL-5f2617
Heavy-duty Column Mast Supported Jib Crane for industrial use. Offers 6000 lbs capacity, flexible height adjustment, and easy installation.
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
Column Mast Supported Jib Crane 800 CBM - 6000 lbs Capacity
$6,899.99
Quantity: 1
Claim Your Seller Account
Column Mast Supported Jib Crane 800 CBM - 6000 lbs Capacity
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

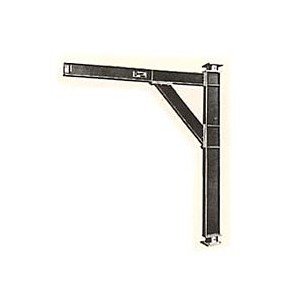

The Column Mast Supported Jib Crane Model 800 CBM is a heavy-duty solution offering maximum hook height with rigid underbracing. Equipped with self-aligning anti-friction bearings for 360° rotation and pressure grease lubrication, this crane features a heavy-section structural mast for reduced floor loads. The jib construction allows for flexibility in height adjustments and easy shipping. With a 6000 lbs capacity and various mounting options, this crane is ideal for industrial applications requiring precision and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

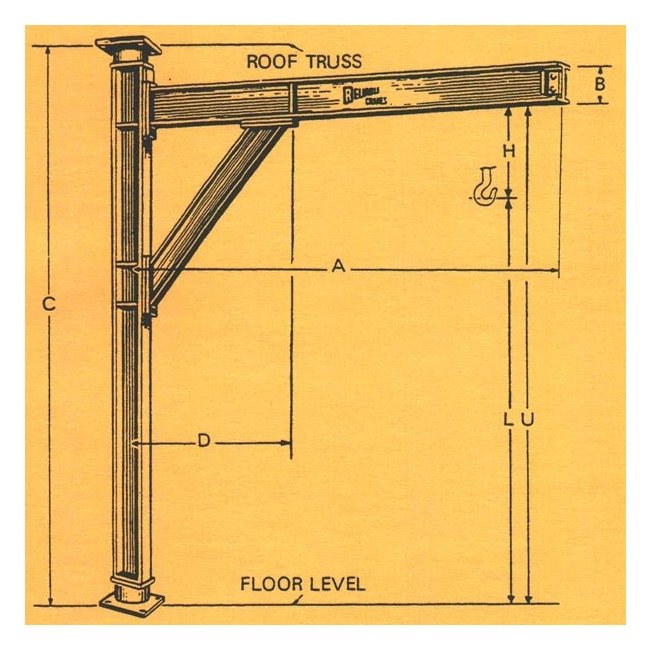

Specifications Boom Size B
18 inches
Specifications Capacity
6000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
6'-0"
Specifications Max Height C
14'-6"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
18'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
3100 lbs.
