Commercial Aluminum Touch Bar Exit Device
Commercial Aluminum Touch Bar Exit Device
SKU:COM-0cc5cc
Durable aluminum touch bar exit device with stainless steel components, 3-hour fire rating, and ANSI Grade 2 & UL compliance.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Commercial Aluminum Touch Bar Exit Device
$179.99
Quantity: 1
Claim Your Seller Account
Commercial Aluminum Touch Bar Exit Device
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

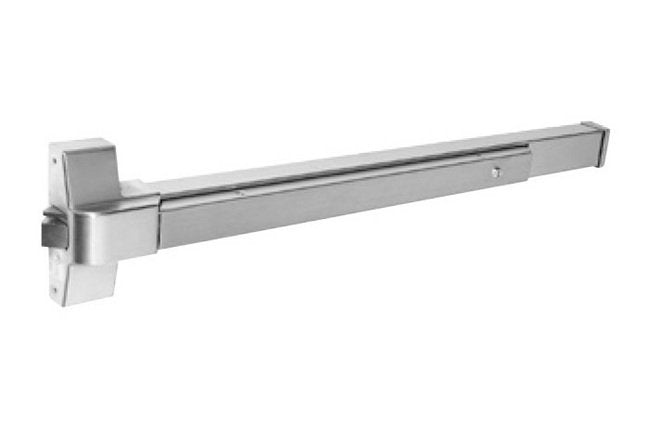

The Commercial Aluminum Touch Bar Exit Device is engineered for seamless egress in high-traffic commercial settings. Crafted from durable extruded anodized aluminum, this exit device ensures reliability and longevity. With stainless steel components, a 3-hour fire rating, and reversible handing, it meets ANSI A156.3 Grade 2 and UL standards, making it an ideal choice for institutional and government procurements.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - AluminumItem# - 19-1034ALItem Name - Entry BallFinish - AluminumItem# - 19-604ALItem Name - Entry LeverFinish - AluminumItem# - 19-619ALItem Name - Storeroom LeverFinish - AluminumItem# - 19-618ALItem Name - Passage LeverFinish - AluminumItem# - 19-752Item Name - Night Latch Handle SetFinish - AluminumItem# - 19-753Item Name - Dummy Handle SetFinish - AluminumItem# - 19-1038ALItem Name - Entry Handle SetDescription - with CylinderFinish - AluminumItem# - 19-1035ALItem Name - Entry Handle SetDescription - no CylinderFinish - AluminumItem# - 19-751Item Name - Exit Only PlateFinish - Aluminum
Features Features

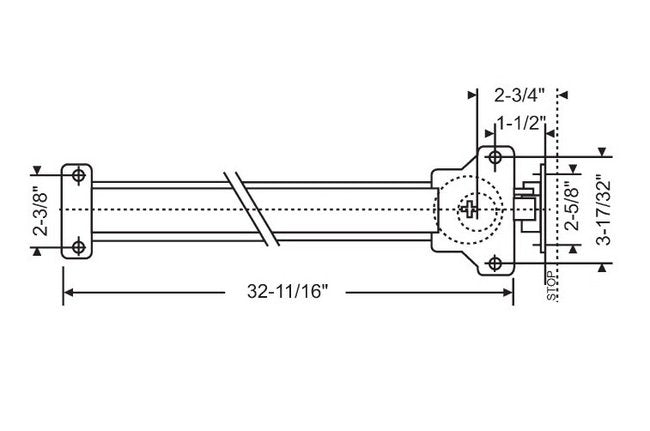

Material: Extruded anodized aluminum push bar, stainless steel springsLatch: Stainless Steel, 3/4" throw - 5/8" dead latchBackset: 2-3/4" Covers 161 prep, includes latch & Strike filler platesStrike: Surface mounted for 5/8" stop with shimProjection: 2-1/2" - 1-7/8" doggedStile: 4-1/4" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: 36", can be field sized to 30"Mounting Height: Recommended installation at 41" from finished floor to center line of push rail.Fasteners: Furnished with sheet metal and machine screwsDogging: 1/2 turn hex keyCylinder Not Included (order separately)
Specifications Finish
Aluminum
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2 | Underwriters Laboratories (UL) Listed
