The SBT Series Trunnion Ball Valve is a versatile solution designed to meet the stringent requirements of both commercial and government applications. Featuring PEEK trunnion bearings for extended cycle life, this two-way valve ensures reliable shut-off or switching functions. With a pressure rating of 6000 psi, stainless steel body, and superlok inlet end connections, it is built for durability and high-performance. The compact design, low operating torque, and blow-out resistant features make it ideal for extreme conditions, while the panel mountable design adds versatility. With compliance to industry standards, this valve provides exceptional quality and performance for a wide range of applications.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

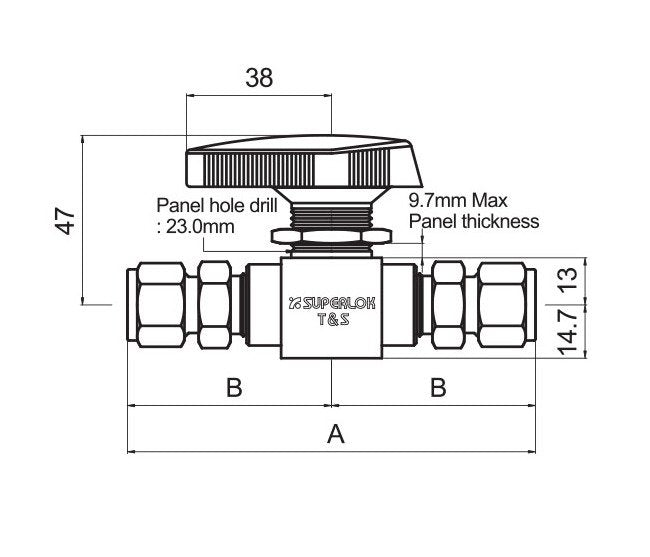

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
117 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Flow Coefficients Cv
1.0
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
