Commercial Grade Brass Ball Valve
Commercial Grade Brass Ball Valve
SKU:VAL-67e745
Reliable commercial brass ball valve with full port design and CSA/UL/FM certifications for durability and performance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Commercial Grade Brass Ball Valve
$34.99
Quantity: 1
Claim Your Seller Account
Commercial Grade Brass Ball Valve
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Commercial Grade Brass Ball Valve is a top-tier choice for both consumer and institutional buyers. Crafted with a two-piece forged brass body, this valve ensures durability and longevity. It features maintenance-free double O-ring stem seals, vented chrome-plated ball, and blowout-proof stem with Ni Plating for added security. With a full port design and PTFE seats, this valve is pressure rated for 150 PSI steam and 600 PSI water, oil, or gas. Certified to CSA, UL, and FM standards, this valve meets industry-leading specifications for reliability and performance.
Product Specifications
Material List 0

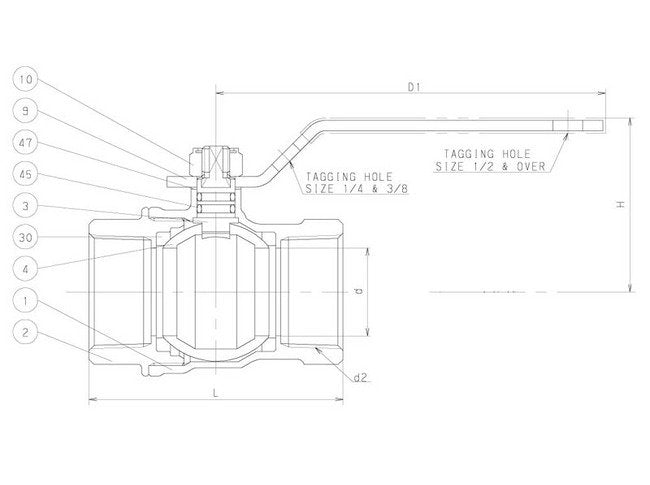

No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
29.00
Specifications Carton Qty
96
Specifications Class
AKSZA
Specifications Dimension D
0.59
Specifications Dimension D1
3.15
Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
1.57
Specifications Dimension L
2.08
Specifications Dimension L1
1.13
Specifications End Size
Threaded
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
