Commercial Wall Plug-In AC Power Supplies
Commercial Wall Plug-In AC Power Supplies
SKU:WAL-c21e34
Enhance product performance with Triad's efficient Commercial Wall Plug-In AC Power Supplies. Keep circuits safe with enclosed, agency-listed AC/DC power sources.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Commercial Wall Plug-In AC Power Supplies
$39.99
Quantity: 1
Claim Your Seller Account
Commercial Wall Plug-In AC Power Supplies
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

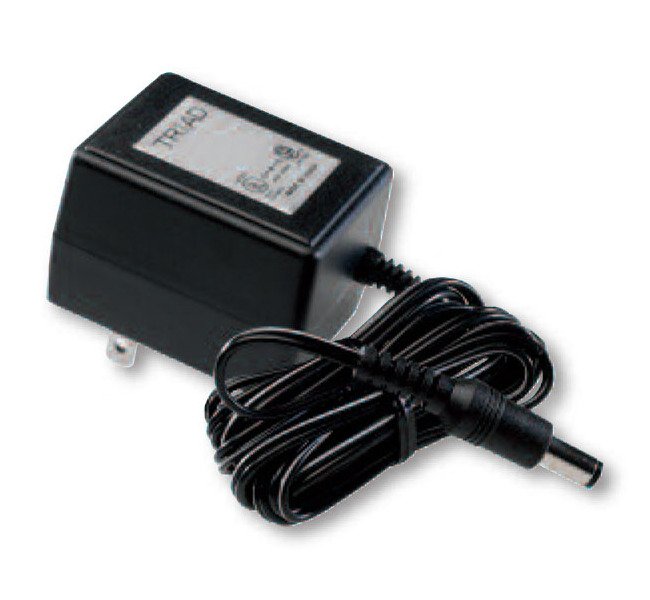

Ideal for Commercial and Industrial applications, these prepackaged linear wall plug-in power supplies from Triad are designed to enhance product performance by eliminating the need for internal cooling devices. This results in reduced noise levels, smaller product sizes, and lighter weights. The compact design ensures heat is kept away from sensitive circuits, providing a safer output. Enclosed to prevent tampering and featuring various agency listings, these AC/DC unregulated power sources are available in popular voltages with generous cord lengths. The 24.0V output, 1.0A current supply is perfect for Commercial and Industrial requirements.
Product Specifications
Note Note
Specifications subject to change without notice

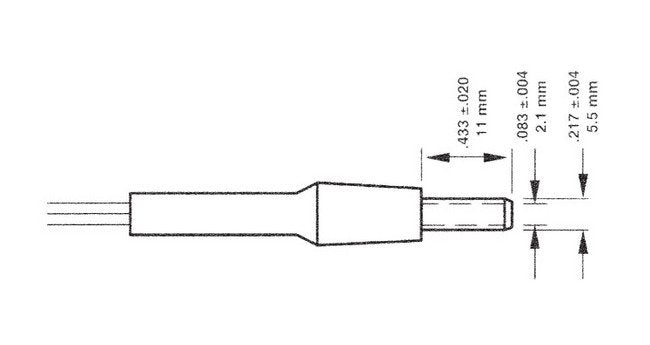

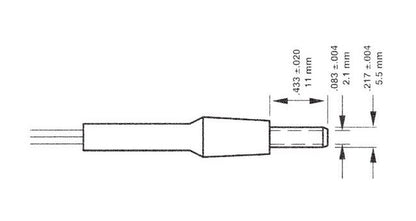

Output Plug Dimensions Inside Diameter Id
2.1 mm
Output Plug Dimensions Length L
11 mm
Output Plug Dimensions Outside Diameter Od
5.5 mm
Specifications Depth D
48 mm
Specifications Height H
80 mm
Specifications Input Power
32.0 W
Specifications Input Voltage Ac
120 V
Specifications Output Current Ac
1.0 A
Specifications Output Voltage Ac
24.0 V
Specifications Type
AC/DC Unregulated
Specifications Width W
60 mm
Technical Notes Technical Notes
Inside (tip) - positive (+), outside - negative (-)Plug use on DC and AC models
