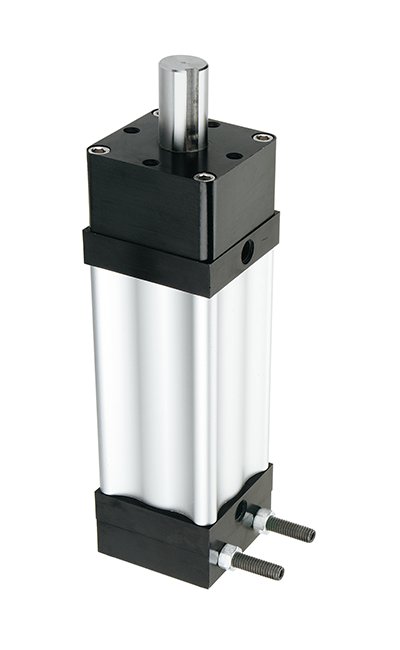

Compact 1-1/4 Inch Bore Rotary Vane Actuator
Compact 1-1/4 Inch Bore Rotary Vane Actuator
SKU:ROT-ff6071
Compact 1-1/4 Inch Bore Rotary Vane Actuator - Precise, durable, and customizable for diverse applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Compact 1-1/4 Inch Bore Rotary Vane Actuator
$349.99
Quantity: 1
Claim Your Seller Account
Compact 1-1/4 Inch Bore Rotary Vane Actuator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact 1-1/4 Inch Bore Rotary Vane Actuator features a 270-degree rotation angle and a maximum torque of 13 in·lb, making it ideal for precise rotary motion applications. With a pneumatic technology type and aluminum body construction, this actuator ensures accurate and repeatable positioning. It is suitable for various applications such as turntable workstations, conveyor rollers, and peristalsis pump drives. Optional position feedback enhances control, and custom units can be tailored to specific needs.
Product Specifications
Applications Include Applications Include
Turntable Work StationsDrive Conveyor Rollers or BeltsDrive Material Feed RollersRatchet Type DriveSheet Feed Material From a StackPeristalsis Pump DriveLow Speed High Torque MotorProduct Mixing
Application Considerations Application Considerations
Overrun: The output shaft can be manually rotated only in its drive direction. Large loads may coast after the actuator has stopped. The output shaft cannot be reverse rotated- Forcing it backwards could damage the Turn-DeAccurate & Repeatable Positioning: Due to the overrun nature of the clutch eSpecial Options: Turn-Act will provide customized units to fit your specific application needs. Modifications include special shafting, special mounts, dutch housings with shot-pin cylinders, disc brakes and thrust protection. Consult your Compact distributor for additional information.
Features Features
Position Feedback (Optional)
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
3.84 in
Specifications Maximum Torque
13 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
1.62 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º
Specifications Shaft Length Or Table Height
1 in
Specifications Shaft Or Table Diameter
0.625 in
Specifications Standard
english_1_1_4
Specifications Technology Type
Pneumatic
