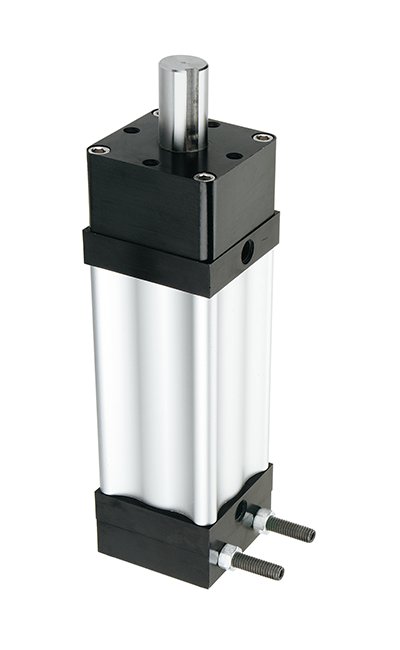

Compact 2-1/2" Bore Turn-Act Rotary Vane Actuator
Compact 2-1/2" Bore Turn-Act Rotary Vane Actuator
SKU:ROT-1a46db
Compact 2-1/2" Bore Turn-Act Rotary Vane Actuator: 180º rotation, 87 in·lb torque. Ideal for precise applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Compact 2-1/2" Bore Turn-Act Rotary Vane Actuator
$599.99
Quantity: 1
Claim Your Seller Account
Compact 2-1/2" Bore Turn-Act Rotary Vane Actuator
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact 2-1/2" Bore Turn-Act Rotary Vane Actuator, by Compact Automation Products, offers precise 180º rotation with a maximum torque of 87 in·lb. Ideal for applications like turntable work stations, conveyor rollers, and product mixing. Features optional position feedback for accurate and repeatable positioning. Customizable units available for tailored solutions.
Product Specifications
Applications Include Applications Include
Turntable Work StationsDrive Conveyor Rollers or BeltsDrive Material Feed RollersRatchet Type DriveSheet Feed Material From a StackPeristalsis Pump DriveLow Speed High Torque MotorProduct Mixing
Application Considerations Application Considerations
Overrun: The output shaft can be manually rotated only in its drive direction. Large loads may coast after the actuator has stopped. The output shaft cannot be reverse rotated- Forcing it backwards could damage the Turn-DeAccurate & Repeatable Positioning: Due to the overrun nature of the clutch eSpecial Options: Turn-Act will provide customized units to fit your specific application needs. Modifications include special shafting, special mounts, dutch housings with shot-pin cylinders, disc brakes and thrust protection. Consult your Compact distributor for additional information.
Features Features
Position Feedback (Optional)
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
5.65 in
Specifications Maximum Torque
87 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
180 º
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
1 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Pneumatic
