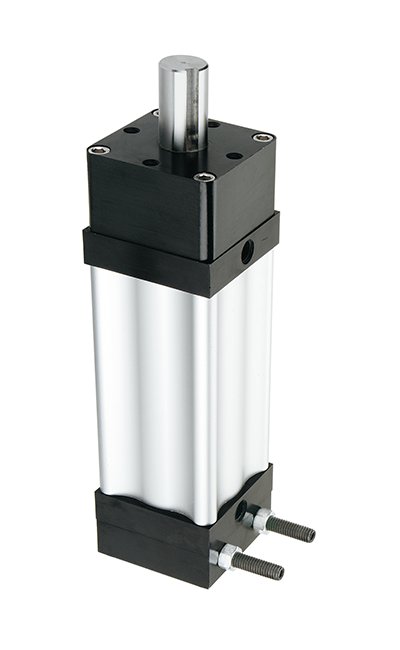

Compact 2-1/2 Inch Bore Rotary Vane Actuator
Compact 2-1/2 Inch Bore Rotary Vane Actuator
SKU:ROT-355633
High-torque rotary vane actuator with precision positioning for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Compact 2-1/2 Inch Bore Rotary Vane Actuator
$499.99
Quantity: 1
Claim Your Seller Account
Compact 2-1/2 Inch Bore Rotary Vane Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact 2-1/2 Inch Bore Rotary Vane Actuator is a high-performance pneumatic actuator designed for precision in industrial applications. With a rotational output shaft and a 90° rotation angle, it offers accurate and repeatable positioning. This actuator delivers a maximum torque of 175 in·lb, making it ideal for tasks such as turntable work stations, conveyor systems, and material feed rollers. Customizable options are available to meet specific application needs, ensuring optimized performance and seamless integration.
Product Specifications
Applications Include Applications Include
Turntable Work StationsDrive Conveyor Rollers or BeltsDrive Material Feed RollersRatchet Type DriveSheet Feed Material From a StackPeristalsis Pump DriveLow Speed High Torque MotorProduct Mixing
Application Considerations Application Considerations
Overrun: The output shaft can be manually rotated only in its drive direction. Large loads may coast after the actuator has stopped. The output shaft cannot be reverse rotated- Forcing it backwards could damage the Turn-DeAccurate & Repeatable Positioning: Due to the overrun nature of the clutch eSpecial Options: Turn-Act will provide customized units to fit your specific application needs. Modifications include special shafting, special mounts, dutch housings with shot-pin cylinders, disc brakes and thrust protection. Consult your Compact distributor for additional information.
Features Features
Position Feedback (Optional)
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
5.65 in
Specifications Maximum Torque
175 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
1 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Pneumatic
