Compact Air Cylinders - GC 4000 Series

Name: Compact Air Cylinders - GC 4000 Series
Brand: Compact Automation Products
SKU: SLI-159a18
Price: 299.99 USD
Availability: OutOfStock

SKU:SLI-159a18

Precision-guided air cylinders for durable and precise linear actuation. Range of sizes and optional features for versatile applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

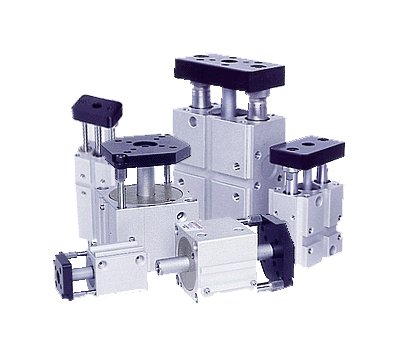

The GC 4000 Series Guided Air Cylinders by Compact Automation Products feature four long guide bushings, providing optimal support and reduced deflection. With a range of stroke lengths from 10mm to 150mm and bore sizes from 12mm to 40mm, these air cylinders are designed for durability and precision. The optional adjustable stroke, double end rod, and shock absorbers enhance versatility and performance, making them ideal for applications requiring reliable linear actuation.

Product Specifications

Features Features

Adjustable Stroke (Optional)Double End Rod (Optional)Shock Absorbers (Optional)

Specifications Actuation Type

Pneumatic

Specifications Axis Configuration

X Axis Only

Specifications Bore Size High

40 mm

Specifications Bore Size Low

12 mm

Specifications Cylinder Action

Single

Specifications Cylinder Configuration

Guided | Simple

Specifications Cylinder Style

Rectangular

Specifications Cylinder Type

Air Cylinder

Specifications Device Type

Linear Actuator | Linear Slide or Stage | Linear Thruster | Pneumatic Thruster | Rod Type

Specifications Material

Aluminum

Specifications Metal Bushing

Yes

Specifications Mounting Type

Flange (Optional) | Multi-Mount Bracket | Other (Optional) | Threaded

Specifications Number Of Shafts

Three

Specifications Orientation

Horizontal

Specifications Stroke Or X Axis Travel High

150 mm

Specifications Stroke Or X Axis Travel Low

10 mm
