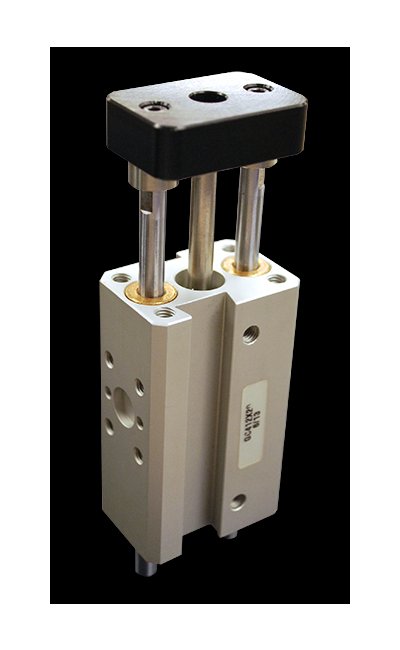

Compact Automation 10mm Bore Guided Slide Cylinder
Compact Automation 10mm Bore Guided Slide Cylinder
SKU:SLI-671d8c
Premium 10mm Bore Guided Slide Cylinder with adjustable stroke bumpers/cushions for precise linear motion in high-load applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Compact Automation 10mm Bore Guided Slide Cylinder
$129.99
Quantity: 1
Claim Your Seller Account
Compact Automation 10mm Bore Guided Slide Cylinder
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Automation 10mm Bore Guided Slide Cylinder is a precision-engineered linear thruster designed for high load capacity and long life. With adjustable stroke bumpers/cushions, it offers stroke lengths ranging from 12mm to 40mm, catering to various industrial applications. Featuring self-lubricating composite bearings, urethane pads and cushions, and close fit dowel pin holes, this cylinder ensures smooth and reliable operation. Its aluminum construction and threaded mounting type meet stringent industry standards for durability and performance.
Product Specifications
Features Features
5 Bore sizesStroke lengths up to 75mm (3")Longer strokes available upon requestImperial and metric mounting stylesSelf-lubricating composite bearingsExternal urethane pads (retract stroke)Internal urethane cushions (extend stroke)Close fit dowel pin holes, standard on all holes.Accessories Include: adjustable stroke collars and pads sensor ready kits.
Specifications Actuation Type
Pneumatic
Specifications Bore Size
10 mm
Specifications Device Type
Linear Thruster | Pneumatic Thruster
Specifications Material
Aluminum
Specifications Mounting Type
Threaded
Specifications Number Of Shafts
Three
Specifications Operating Pressure Range High
150 psi
Specifications Operating Pressure Range Low
20 psi
Specifications Shaft Diameter
5 mm
Specifications Stroke Or X Axis Travel High
40 mm
Specifications Stroke Or X Axis Travel Low
12 mm
Specifications Thermoplasticcomposite Bushing
Yes
