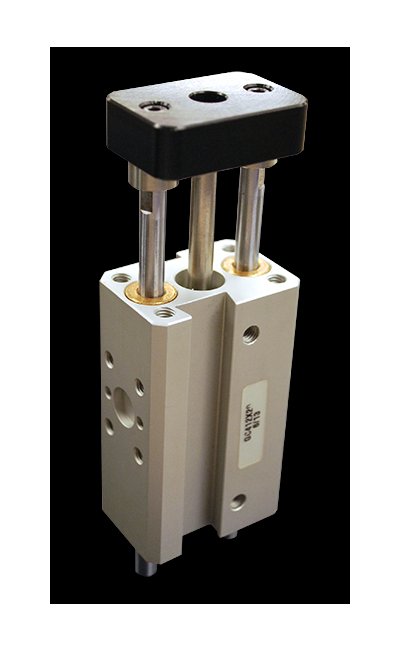

Compact Automation 20mm Bore Low Guided Slide Cylinder

Name: Compact Automation 20mm Bore Low Guided Slide Cylinder
Brand: Compact Automation Products
SKU: SLI-48dc6b
Price: 129.99 USD
Availability: OutOfStock

SKU:SLI-48dc6b

High-capacity 20mm Bore Low Guided Slide Cylinder with durable design for precision linear thruster applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Compact Automation 20mm Bore Low Guided Slide Cylinder is a precision-engineered linear thruster suitable for various industrial applications. With a bore size of 20mm and stroke lengths up to 75mm, this cylinder offers high load capacity and long life. It features self-lubricating composite bearings, external urethane pads for retract stroke, internal urethane cushions for extend stroke, and close fit dowel pin holes. The cylinder is designed with a slim, compact profile and is made of durable aluminum, ensuring reliability and efficiency in operation. Get optimal performance with this pneumatic actuated cylinder, ideal for precise linear thrusting needs.

Product Specifications

Features Features

5 Bore sizesStroke lengths up to 75mm (3")Longer strokes available upon requestImperial and metric mounting stylesSelf-lubricating composite bearingsExternal urethane pads (retract stroke)Internal urethane cushions (extend stroke)Close fit dowel pin holes, standard on all holes.Accessories Include: adjustable stroke collars and pads sensor ready kits.

Specifications Actuation Type

Pneumatic

Specifications Bore Size

20 mm

Specifications Device Type

Linear Thruster | Pneumatic Thruster

Specifications Material

Aluminum

Specifications Mounting Type

Threaded

Specifications Number Of Shafts

Three

Specifications Operating Pressure Range High

150 psi

Specifications Operating Pressure Range Low

20 psi

Specifications Shaft Diameter

8 mm

Specifications Stroke Or X Axis Travel High

75 mm

Specifications Stroke Or X Axis Travel Low

25 mm

Specifications Thermoplasticcomposite Bushing

Yes
