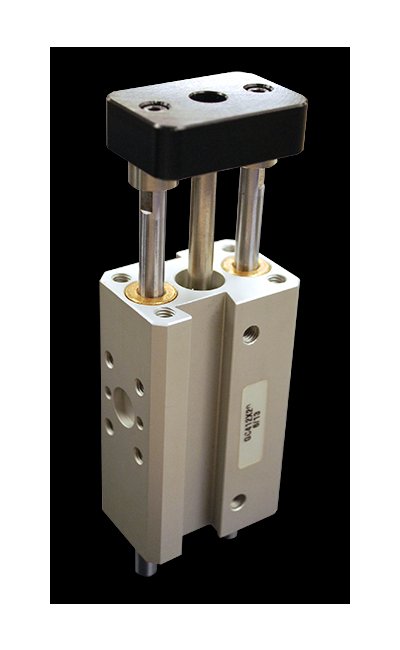

Compact Automation 32mm Bore Guided Slide Cylinder
Compact Automation 32mm Bore Guided Slide Cylinder
SKU:SLI-f4de0d
Compact Automation 32mm Bore Guided Slide Cylinder with adjustable stroke, high load capacity, and durable design for precise linear and pneumatic applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Compact Automation 32mm Bore Guided Slide Cylinder
$189.99
Quantity: 1
Claim Your Seller Account
Compact Automation 32mm Bore Guided Slide Cylinder
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Automation Products Guided Slide Cylinder with a 32mm bore size is engineered for precision and durability. Featuring adjustable stroke options, bumpers, and cushions, this cylinder offers a slim design and high load capacity for versatile applications. With features like self-lubricating composite bearings and urethane pads, it ensures smooth operation and extended service life. Ideal for linear and pneumatic thruster applications, this cylinder meets rigorous industry standards for performance and reliability.
Product Specifications
Features Features
5 Bore sizesStroke lengths up to 75mm (3")Longer strokes available upon requestImperial and metric mounting stylesSelf-lubricating composite bearingsExternal urethane pads (retract stroke)Internal urethane cushions (extend stroke)Close fit dowel pin holes, standard on all holes.Accessories Include: adjustable stroke collars and pads sensor ready kits.
Specifications Actuation Type
Pneumatic
Specifications Bore Size
32 mm
Specifications Device Type
Linear Thruster | Pneumatic Thruster
Specifications Material
Aluminum
Specifications Mounting Type
Threaded
Specifications Number Of Shafts
Three
Specifications Operating Pressure Range High
150 psi
Specifications Operating Pressure Range Low
20 psi
Specifications Shaft Diameter
12 mm
Specifications Stroke Or X Axis Travel High
75 mm
Specifications Stroke Or X Axis Travel Low
25 mm
Specifications Thermoplasticcomposite Bushing
Yes
