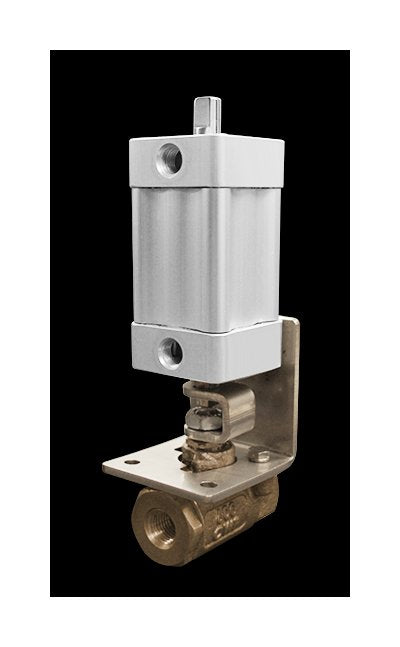

Compact Automation 700 in-lb Spring Return Ball Valve Actuator

Compact Automation 700 in-lb Spring Return Ball Valve Actuator

SKU:VAL-5c776b

Experience precision and reliability with the Compact Automation Spring Return Actuator, offering 700 in-lb torque for efficient valve operation.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Compact Automation 700 in-lb Spring Return Ball Valve Actuator

Compact Automation 700 in-lb Spring Return Ball Valve Actuator

$299.99

Quantity: 1

Claim Your Seller Account

Compact Automation 700 in-lb Spring Return Ball Valve Actuator

Compact Automation 700 in-lb Spring Return Ball Valve Actuator

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Compact Automation 700 in-lb Spring Return Ball Valve Actuator combines precision engineering with seamless functionality. This pneumatic vane actuator ensures reliable rotary motion valve operation with non-hazardous, heavy-duty performance. The actuator torque of 700 in-lb and quarter turn range provide efficient on/off isolating capabilities, ideal for diverse institutional applications. With a temperature range of -20 ºF to 180 ºF, and easy spring pretension adjustment, this spring return operator offers flexibility and superior control, meeting stringent industry standards for durability and performance.

Product Specifications

Features Features
Non-hazardousHeavy Duty Double Acting Ball Valve SystemsSpring Return Valve operators Single acting with spring close or openValve Operator Systems
Specifications Acting Type
Single Acting (Air to Spring)
Specifications Actuation Method
Pneumatic
Specifications Actuator Torque
700 in·lb
Specifications Actuator Type
Vane Actuator
Specifications Full Range Of Rotary Motion
Quarter Turn (90º)
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Operation
On/Off (Isolating)
Specifications Torque
140 to 800 in·lb
Specifications Valve Motion
Rotary Motion Valve
Specifications Valve Size
1/4 to 3 in
